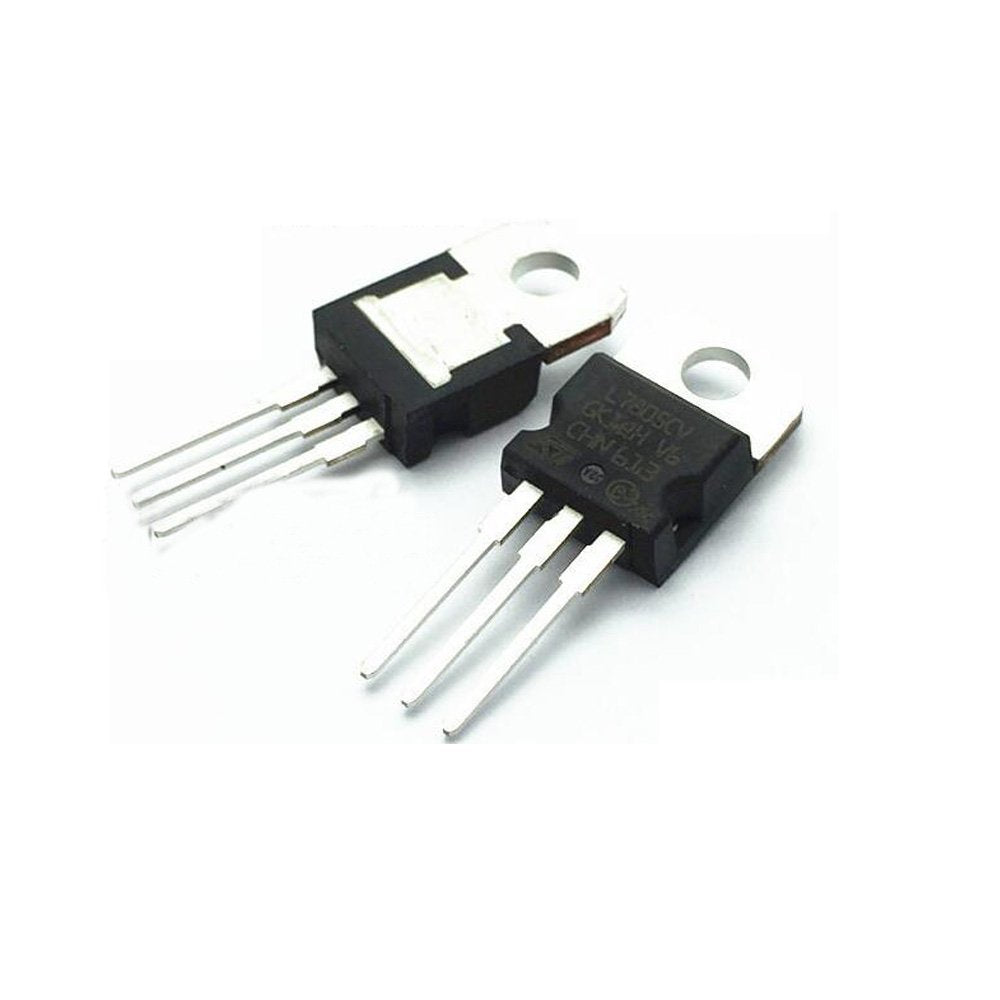

7805 5V 1.5A voltage regulator

The 7805 5V 1.5A voltage regulator is a three-pin linear regulator that turns a higher DC voltage, such as 9 V or 12 V, into a steady 5 V output. It can supply up to 1.5 A with a suitable heatsink and has built-in current limiting and thermal shutdown, making it a simple, reliable way to power 5 V logic, Arduino projects and sensors.

7805 5V 1.5A voltage regulator Specifications

• Output voltage: 5 V fixed
• Output current: up to 1.5 A (with heatsink)
• Input voltage: about 7 V to 25 V
• Dropout voltage: about 2 V
• Protection: internal current limiting and thermal shutdown
• Package: TO-220, 3 pins
• Pinout (front view, left to right): 1 input, 2 ground, 3 output

7805 5V 1.5A voltage regulator Applications

• 5 V supplies for Arduino, sensors and logic ICs from 9–12 V sources
• Running 5 V circuits from car or solar batteries
• Bench and lab power supply projects
• Standalone projects that do not use USB power

What's in the Box

• 1 × 7805 5 V voltage regulator

Tip: Fit a 0.33 µF capacitor on the input and a 0.1 µF capacitor on the output, close to the pins. The regulator turns the extra voltage into heat, (Vin − 5 V) × current, so 12 V in at 0.5 A means 3.5 W, which needs a heatsink.
