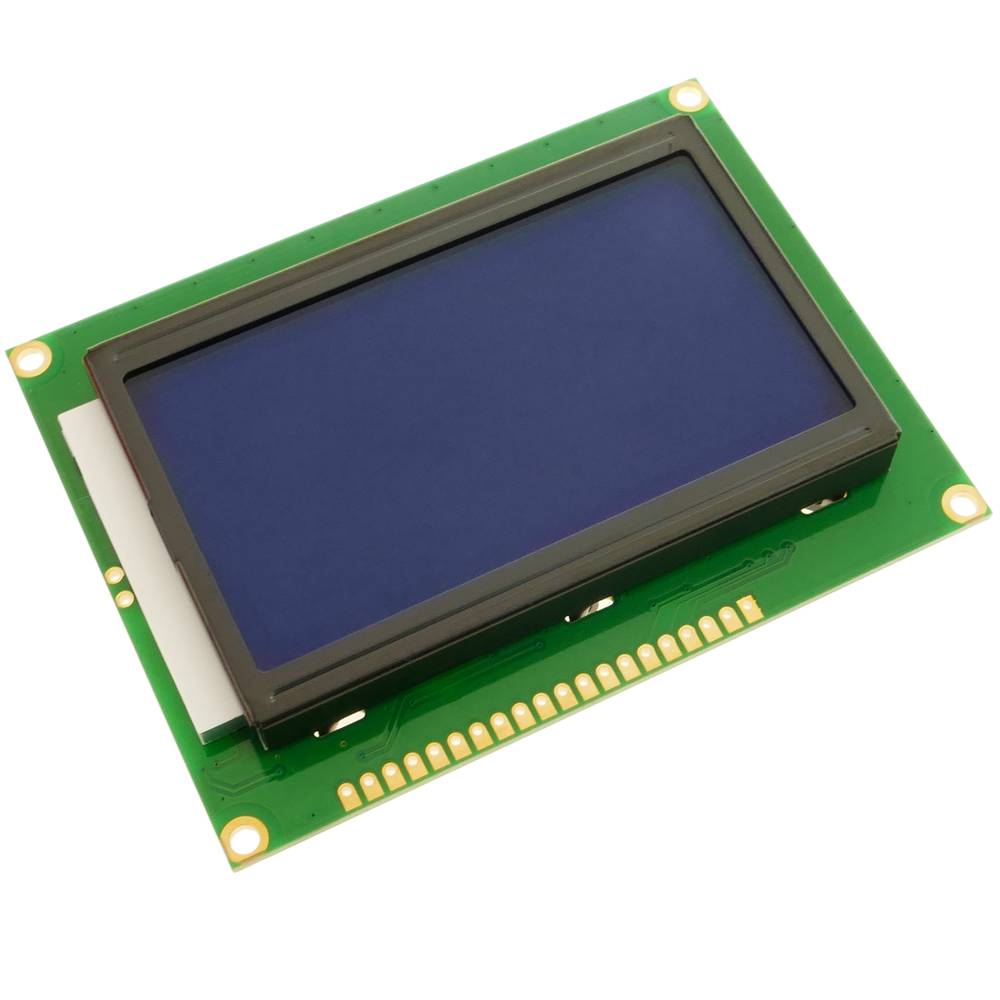

LCD12864

The LCD12864 is a 128 × 64 pixel monochrome graphic LCD module with a backlight, used to show text, numbers, menus, icons and simple graphics in microcontroller projects. Unlike character LCDs such as the 1602, every pixel can be controlled, so it can draw charts, progress bars and custom fonts for Arduino, ESP32 and 3D printer controller builds.

LCD12864 Specifications

• Resolution: 128 × 64 pixels
• Display type: monochrome graphic LCD with backlight
• Shows: text, menus, icons, bitmaps and simple graphics
• Controller: check the board marking; most LCD12864 modules use the ST7920
• Libraries: U8g2 for Arduino supports the ST7920 and KS0108 types

LCD12864 Applications

• Menu screens for 3D printer and CNC controllers
• Weather stations and data loggers
• Voltage, temperature and battery monitors
• Clocks, simple games and animations
• University embedded systems labs

What's in the Box

• 1 × LCD12864 graphic LCD module

Tip: Check the controller chip and pin labels on your board before wiring. On ST7920 boards, connecting PSB to GND selects serial mode, which needs only three signal wires (RS, R/W and E) and works with the U8g2 library on Arduino.
