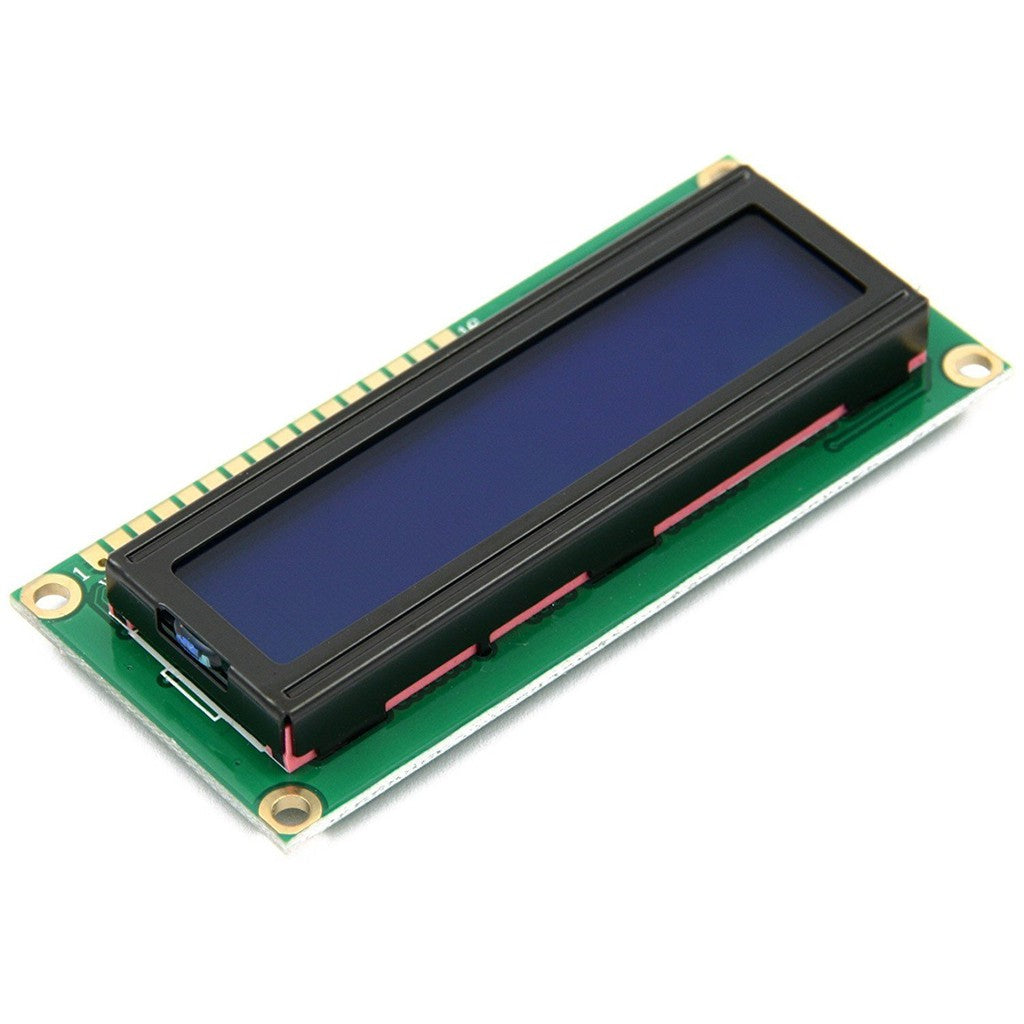

LCD1602 Blue Backlight

The LCD1602 Blue Backlight is a 16×2 character LCD module that shows 2 lines of 16 characters in white on a blue LED backlight. It uses an HD44780-compatible controller, so it works with the standard LiquidCrystal library on Arduino and with most other microcontrollers. It is an easy, low-cost way to show sensor readings, menus and messages in your projects.

LCD1602 Blue Backlight Specifications

• Display format: 16 characters × 2 lines
• Character size: 5 × 8 dots
• Controller: HD44780 compatible
• Interface: parallel, 4-bit or 8-bit mode
• Connector: 16 pins at 2.54 mm pitch
• Supply voltage: 5 V
• Backlight: blue LED on pins 15 (A) and 16 (K), with white characters

LCD1602 Blue Backlight Applications

• Showing temperature, humidity and other sensor readings
• Menus and settings screens
• Clocks, timers and counters
• Electronics classes and Arduino starter projects

What's in the Box

• 1 × LCD1602 module with blue backlight

Tip: Wire a 10 kΩ potentiometer to the V0 pin (pin 3) to set the contrast; if you see only blocks or a blank screen, adjust it first. In 4-bit mode the display needs just 6 Arduino pins (RS, E and D4–D7); for a 4-wire connection, choose the LCD1602 I2C version instead.
