LCD1602 LCD Keypad Shield Blue Backlight

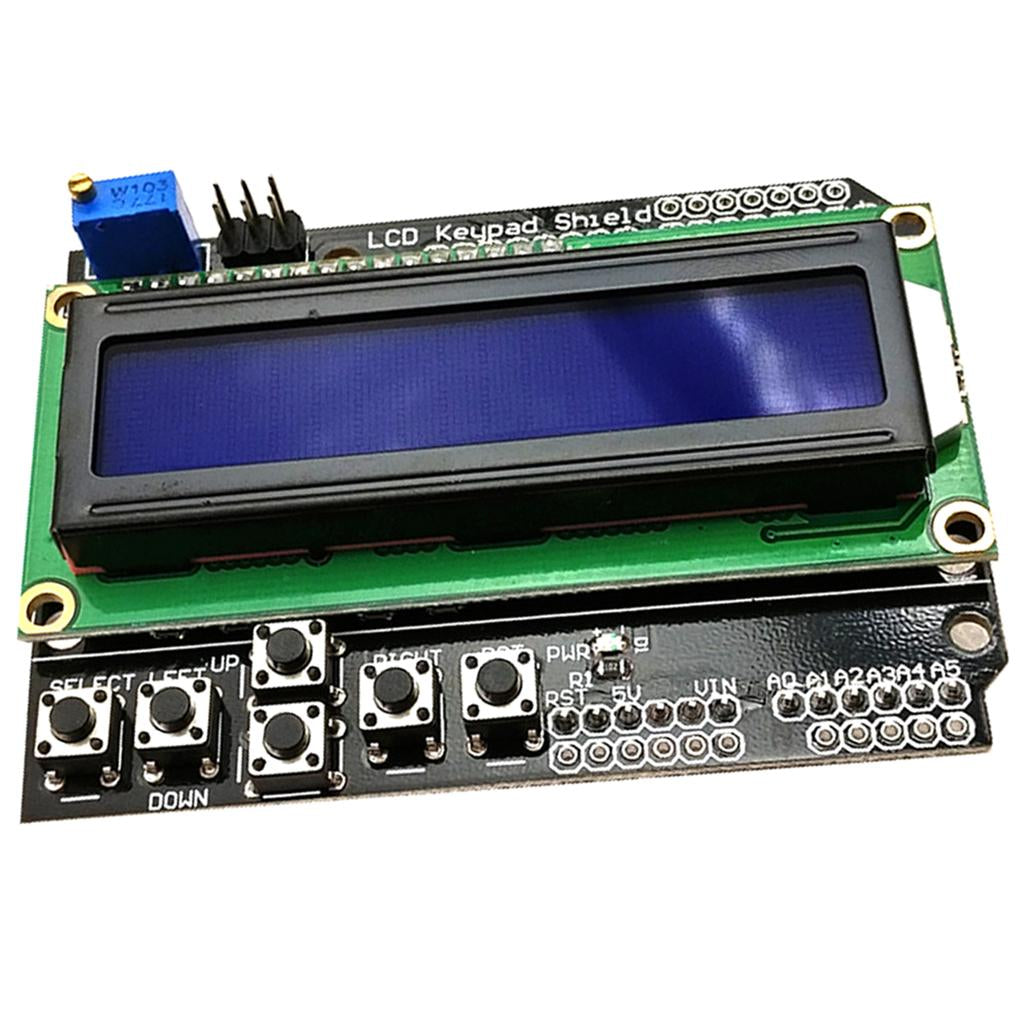

The LCD1602 LCD Keypad Shield plugs straight onto an Arduino Uno and adds a 16x2 character display with a blue backlight plus a set of push buttons, with no wiring needed. It is a quick way to give a project a menu, show sensor readings or let the user set values, and it works with the standard Arduino LiquidCrystal library.

LCD1602 LCD Keypad Shield Specifications

• Display: 16 characters × 2 lines (LCD1602), HD44780-compatible controller
• Backlight: blue, with white characters
• Buttons: 5 input keys (Select, Left, Up, Down, Right) read on analog pin A0, plus an Arduino reset button
• LCD pins used: D4–D7 for data, D8 (RS), D9 (Enable) and D10 for backlight control
• Contrast: adjustable with the on-board potentiometer
• Compatible boards: Arduino Uno and other boards with the Uno header layout, such as the Mega

LCD1602 LCD Keypad Shield Applications

• Menus and settings screens for Arduino projects
• Showing temperature, humidity and other sensor readings
• Timers, counters and simple games
• Electronics classes and beginner Arduino lessons

What's in the Box

• 1 × LCD1602 LCD keypad shield, blue backlight

Tip: Start your sketch with LiquidCrystal lcd(8, 9, 4, 5, 6, 7); and read the buttons with analogRead(A0), since each key gives a different voltage. If the screen lights up but shows no text, turn the contrast potentiometer slowly until the characters appear.
