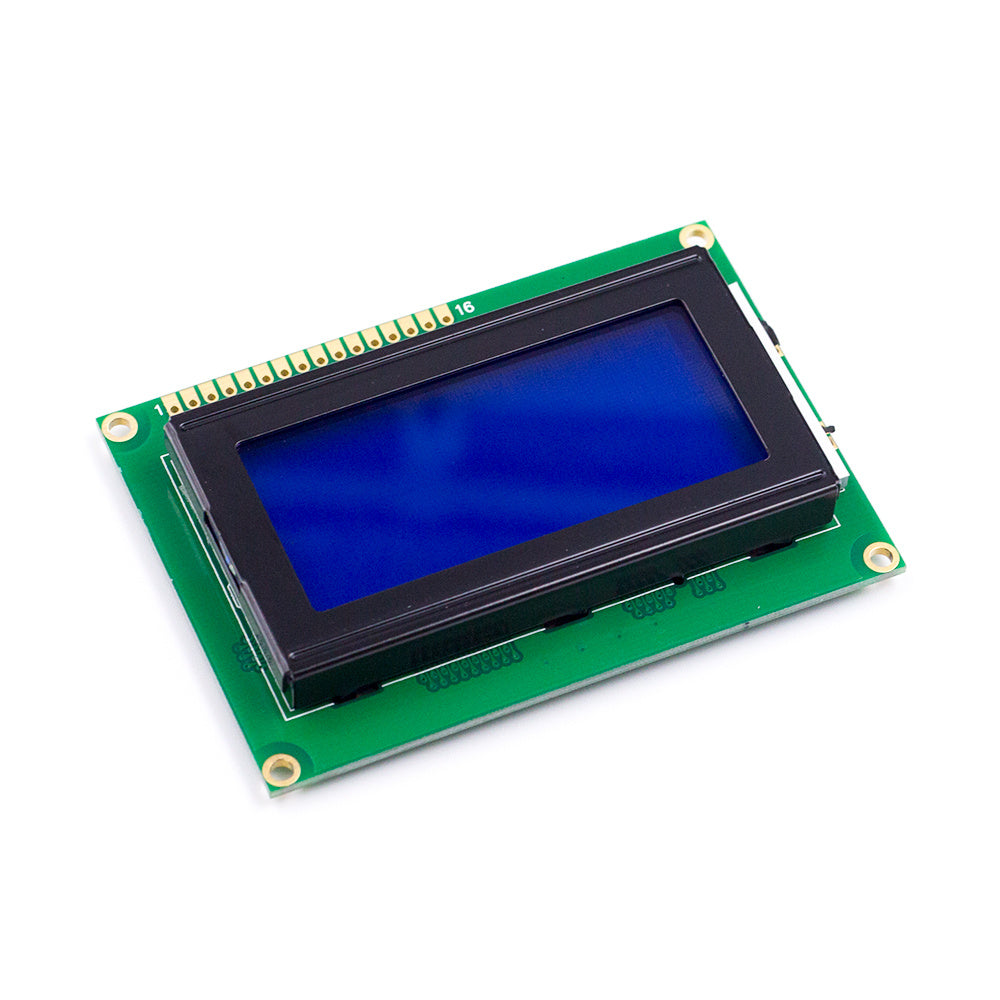

LCD1604

The LCD1604 is a 16 × 4 character LCD display that shows four lines of 16 characters each. It uses the standard HD44780-compatible controller, so it works with the Arduino LiquidCrystal library and most microcontrollers, and its LED backlight keeps the text readable inside dark enclosures. It is a good step up from the 16 × 2 LCD1602 when you need more information on screen.

LCD1604 Specifications

• Display format: 16 characters × 4 lines
• Character size: 5 × 8 dot matrix
• Controller: HD44780-compatible
• Interface: parallel, 4-bit or 8-bit mode
• Connection: 16 pins
• Supply voltage: 5 V DC
• Backlight: LED

LCD1604 Applications

• Showing sensor readings, menus and status messages
• Clocks, timers and counters
• DIY instruments and test equipment
• Control panels for home automation
• Learning to program displays with Arduino

What's in the Box

• 1 × LCD1604 16 × 4 character display

Tip: Connect a 10 kΩ potentiometer to the V0 (contrast) pin; if you see only blocks or a blank screen, adjust the contrast first. In 4-bit mode the display needs only 6 Arduino pins, or add an I2C adapter board to drive it with just 2.
