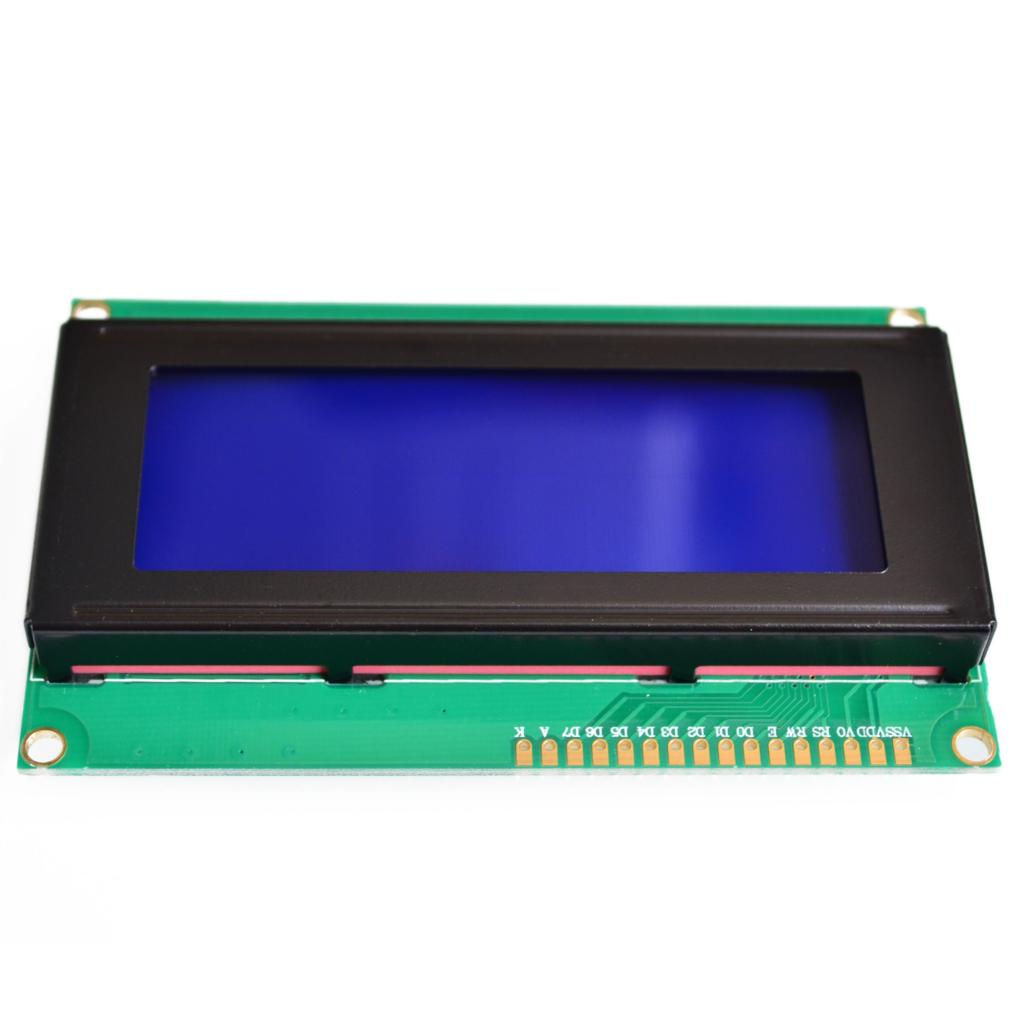

LCD2004 Blue Backlight

The LCD2004 Blue Backlight is a 20-character by 4-line alphanumeric LCD module with white characters on a blue background. It is built around the standard HD44780-compatible controller, so it works with the Arduino LiquidCrystal library and most microcontrollers, and it shows four full lines of text for menus, readings and messages.

LCD2004 Blue Backlight Specifications

• Display: 20 characters × 4 lines, alphanumeric
• Controller: HD44780-compatible
• Interface: parallel, 4-bit or 8-bit mode
• Connections: 16 pins (power, contrast, RS, RW, E, D0–D7, backlight)
• Supply voltage: 5 V
• Backlight: blue LED with white characters
• Contrast: set with an external potentiometer on the V0 pin

LCD2004 Blue Backlight Applications

• Sensor dashboards for temperature, humidity, voltage and distance
• Menu and settings screens for Arduino projects
• Status displays for 3D printers, CNC machines and test rigs
• Clocks, counters and classroom projects

What's in the Box

• 1 × LCD2004 20×4 character display, blue backlight

Tip: Wire it in 4-bit mode with RS, E and D4–D7 to save pins, and connect a 10 kΩ potentiometer to the V0 pin for contrast; blue displays often need the contrast set carefully before the text appears. For fewer wires, fit a PCF8574 I2C backpack and use only SDA and SCL.
