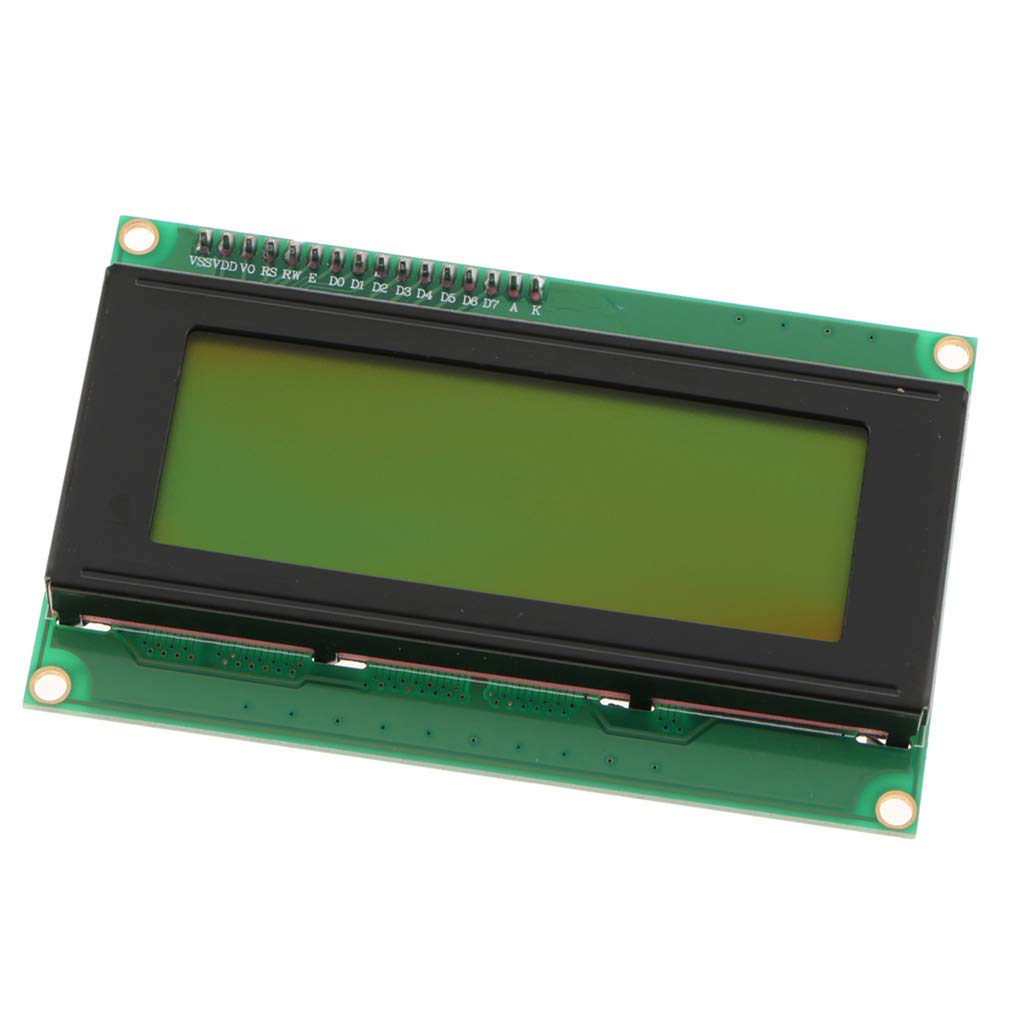

LCD2004 Yellow Green Backlight

The LCD2004 Yellow Green Backlight is a 20-character by 4-line alphanumeric LCD module with dark characters on a yellow-green background. It uses the standard HD44780-compatible controller, so it works straight away with the Arduino LiquidCrystal library, and its four lines give plenty of room for menus, sensor readings and status messages.

LCD2004 Yellow Green Backlight Specifications

• Display: 20 characters × 4 lines, alphanumeric
• Controller: HD44780-compatible
• Interface: parallel, 4-bit or 8-bit mode
• Connections: 16 pins (power, contrast, RS, RW, E, D0–D7, backlight)
• Supply voltage: 5 V
• Backlight: yellow-green LED with dark characters
• Contrast: set with an external potentiometer on the V0 pin

LCD2004 Yellow Green Backlight Applications

• Showing temperature, voltage, distance and other sensor readings
• Menus and settings screens for Arduino and ESP32 projects
• Status displays for 3D printers, CNC machines and controllers
• Clocks, timers, counters and school projects

What's in the Box

• 1 × LCD2004 20×4 character display, yellow-green backlight

Tip: In 4-bit mode the display needs six Arduino pins (RS, E and D4–D7) plus a 10 kΩ potentiometer for contrast. If the backlight is on but no text shows, adjust the contrast. To save pins, add an I2C adapter board (PCF8574 backpack) and drive the display with just SDA and SCL.
