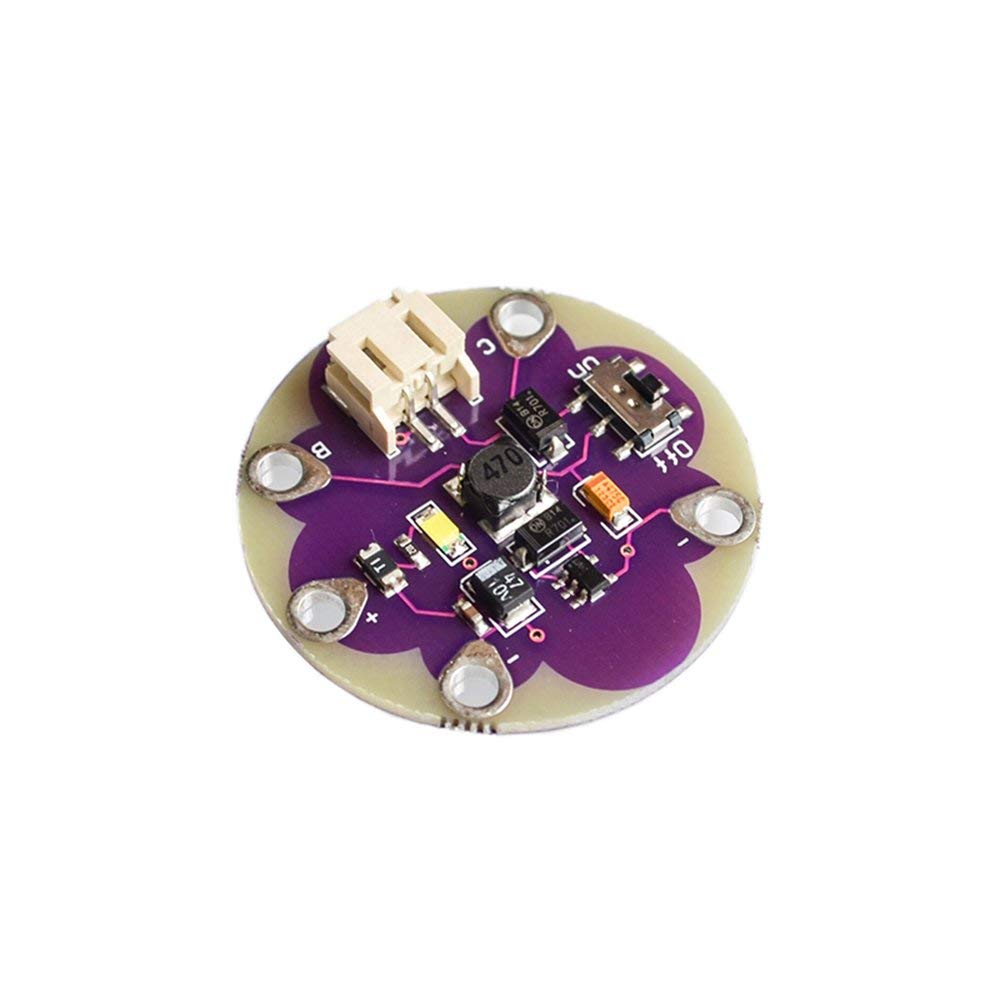

LilyPad LiPower

The LilyPad LiPower is a small, sewable power supply for LilyPad wearable projects. It takes a single-cell 3.7 V LiPo battery through its JST connector and boosts the voltage to a steady 5 V for your LilyPad network. A built-in switch turns the project on and off, and the output is protected against short circuits.

LilyPad LiPower Specifications

• Input: single-cell 3.7 V LiPo battery
• Battery connector: JST socket
• Output: 5 V (boost converter)
• Protection: short-circuit protected
• Switch: on-board power switch
• Charging: no on-board charger; terminals are provided to connect a separate LiPo charger
• Mounting: large sewable pads for conductive thread

LilyPad LiPower Applications

• Powering LilyPad Arduino boards and LEDs from a rechargeable LiPo
• Light-up clothing, costumes and bags
• Portable e-textile and wearable sensor projects
• Classroom wearable electronics kits

What's in the Box

• 1 × LilyPad LiPower board

Tip: The LiPower does not charge the battery, so recharge the LiPo with a dedicated single-cell LiPo charger. Always unplug the battery before washing a project.
