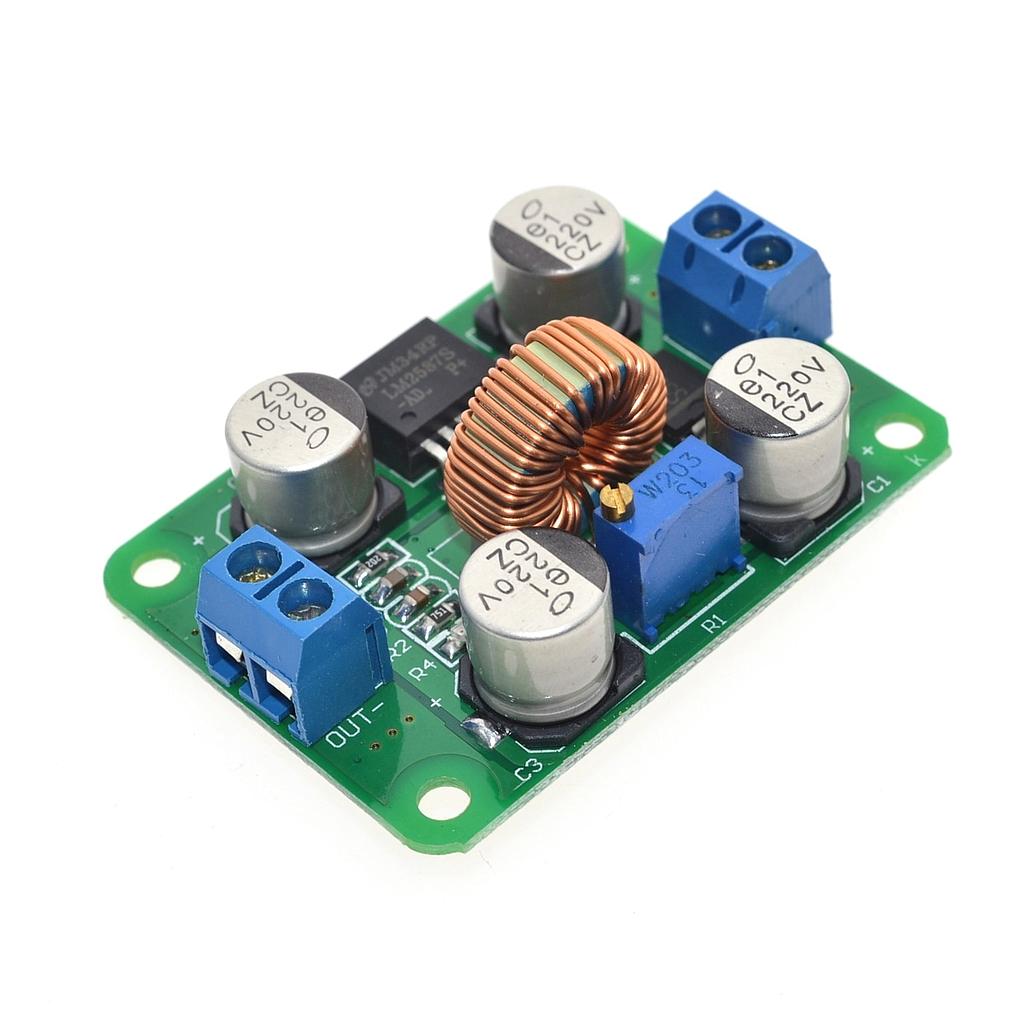

LM2587 DC Boost Converter Module3.5-30V to 4.0-30V

The LM2587 DC Boost Converter module raises a lower DC voltage to a higher, adjustable output. It accepts 3.5 V to 30 V at the input and can be set to give 4 V to 30 V at the output, so you can run a 12 V device from a battery pack or step a 5 V supply up for motors, LED strips and test circuits.

LM2587 DC Boost Converter Specifications

• Regulator IC: LM2587 switching regulator with a 5 A internal switch
• Topology: boost (step-up)
• Input voltage: 3.5 V to 30 V
• Output voltage: 4 V to 30 V, adjustable
• Switching frequency: 100 kHz
• Adjustment: on-board potentiometer

LM2587 DC Boost Converter Applications

• Running 12 V devices from lithium battery packs
• Boosting a 5 V USB supply for higher-voltage modules
• Powering LED strips, small motors and fans
• Bench power for prototypes and experiments

What's in the Box

• 1 × LM2587 DC boost converter module

Tip: A boost converter can only raise the voltage; the output can never be set below the input. Set the output with a multimeter before connecting your load, and add cooling if you draw high current.
