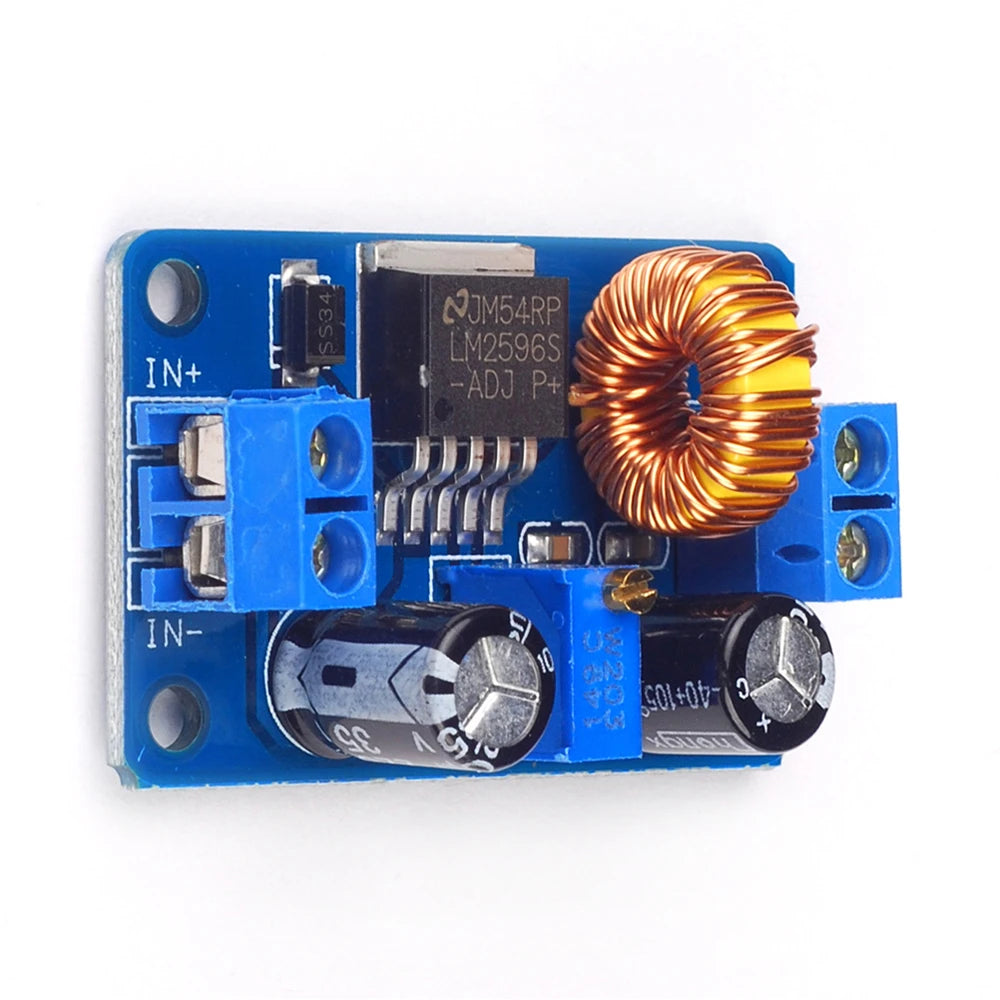

LM2596 DC-DC Adjustable Step- Down Module with Terminal

The LM2596 DC-DC Adjustable Step-Down Module with Terminal is a buck converter built around the LM2596 switching regulator, with screw terminals for the input and output wires. It converts a higher DC voltage, such as 12 V or 24 V, efficiently into a lower voltage that you set with the multi-turn potentiometer on the board, and is a common way to power Arduino, ESP32, sensors, LED strips and small motors from a battery or adapter.

LM2596 DC-DC Adjustable Step-Down Module Specifications

• Regulator IC: LM2596 adjustable, 150 kHz switching
• Type: step-down (buck) DC-DC converter
• Input voltage: up to 40 V DC
• Output voltage: adjustable from about 1.25 V, at least 1.5 V below the input
• Output current: up to 3 A peak, about 2 A continuous without extra cooling
• Adjustment: multi-turn trimmer potentiometer
• Connections: screw terminals for IN+ / IN− and OUT+ / OUT−

LM2596 DC-DC Adjustable Step-Down Module Applications

• Powering Arduino and ESP32 boards from 12 V or 24 V supplies
• Running 5 V sensors, servos and USB devices from a car or solar battery
• Simple adjustable supply for testing circuits on the bench
• Driving LED strips and small DC loads at a set lower voltage

What's in the Box

• 1 × LM2596 adjustable step-down module with screw terminals

Tip: Set the output with a multimeter before you connect your load, because the module may arrive set to a voltage that could damage a 3.3 V or 5 V board. Double-check the input polarity before powering up, and add a heatsink if you draw close to 2 A for long periods.
