Load Cell Half Bridge 50Kg

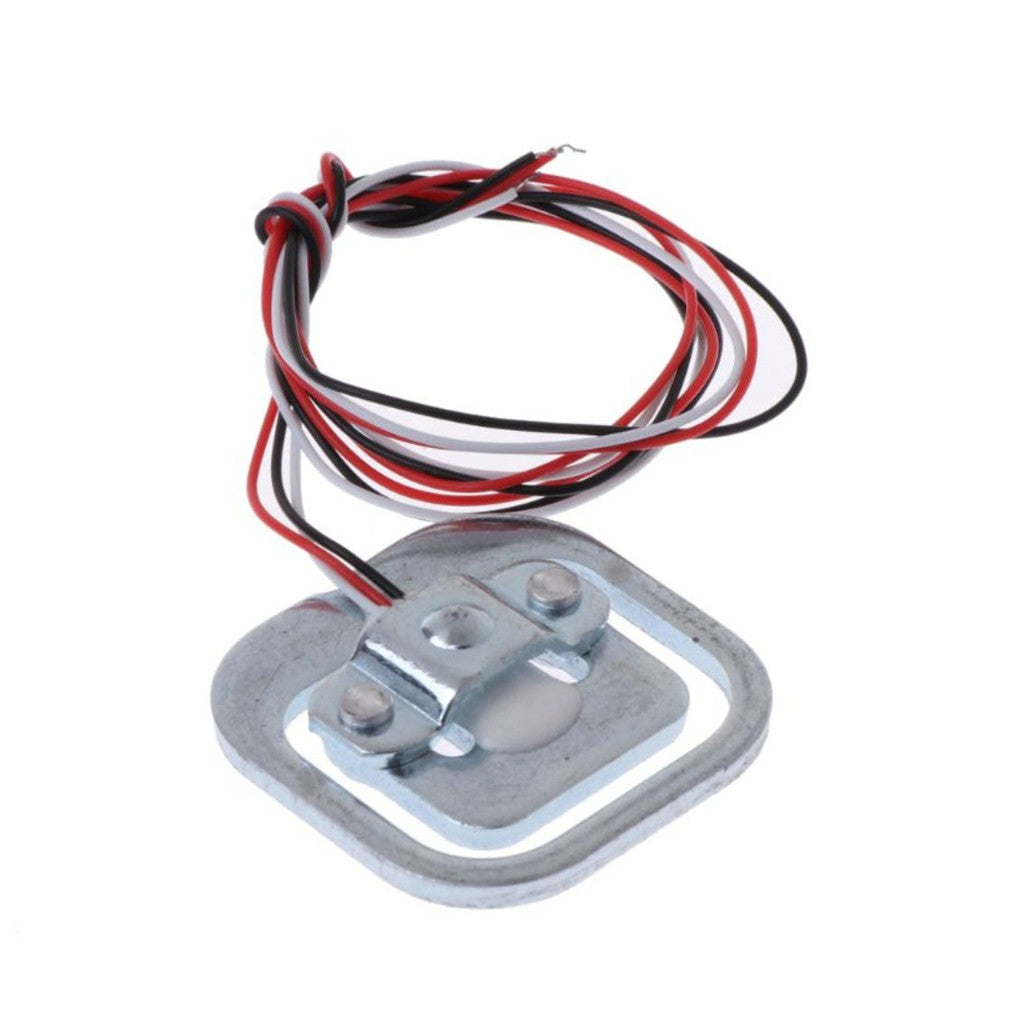

The Load Cell Half Bridge 50Kg is a strain gauge weight sensor rated for up to 50 kg. It contains half of a Wheatstone bridge and has three wires, so it is normally used in sets of two or four, wired together into a full bridge and read by an HX711 amplifier module. This is the same type of sensor used in the corners of bathroom scales, which makes it a good choice for DIY scales, weighing platforms and force measurement projects.

Load Cell Half Bridge 50Kg Specifications

• Capacity: 50 kg per load cell
• Type: half-bridge strain gauge
• Wires: 3
• Typical use: 2 or 4 cells combined into a full bridge
• Total capacity: up to 200 kg with 4 cells
• Amplifier: HX711 or similar (not included)

Load Cell Half Bridge 50Kg Applications

• DIY bathroom and body-weight scales
• Weighing platforms, bins and shelves
• Water tank and beehive weight monitoring
• Force and weight experiments in school and university labs

What's in the Box

• 1 × 50 kg half-bridge load cell

Tip: For a bathroom-style scale, use four cells, one in each corner, and wire them into a full bridge before connecting to the HX711. Mount each cell so the load presses on its centre while the outer edge is supported, leaving space underneath for it to flex, then calibrate with a known weight in your sketch.
