Load Cell Sensor 1Kg

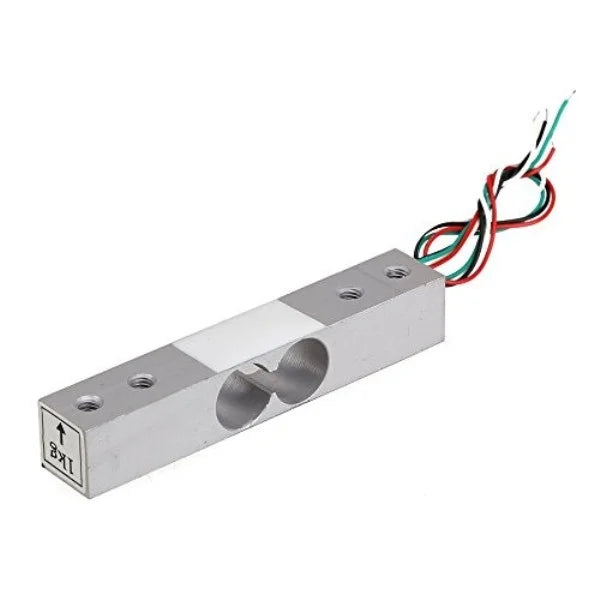

The Load Cell Sensor 1Kg is a small strain gauge load cell with a 1 kg capacity for measuring light weights and forces. It outputs a tiny voltage that changes with the load, which an HX711 amplifier module converts into a digital reading for an Arduino, ESP32 or Raspberry Pi. It suits jewellery and letter scales, coffee scales and school weighing experiments.

Load Cell Sensor 1Kg Specifications

• Rated capacity: 1 kg
• Type: strain gauge load cell
• Output: low-level analog signal in the millivolt range
• Amplifier needed: yes, for example an HX711 module (not included)
• Mounting: one end fixed to a base, the other end carrying the weighing platform

Load Cell Sensor 1Kg Applications

• Small digital scales for jewellery, letters and ingredients
• Coffee and kitchen scales with a timer
• Measuring small pulling and pushing forces
• IoT scales that log weight to a phone or dashboard
• Physics and STEM lab experiments

What's in the Box

• 1 × 1 kg load cell sensor

Tip: Most load cells of this type have 4 wires, red E+, black E−, green A+ and white A−, which connect to the matching HX711 pins; check the label on your cell to be sure. Mount it so the force passes only through the load cell, and never load it above 1 kg.
