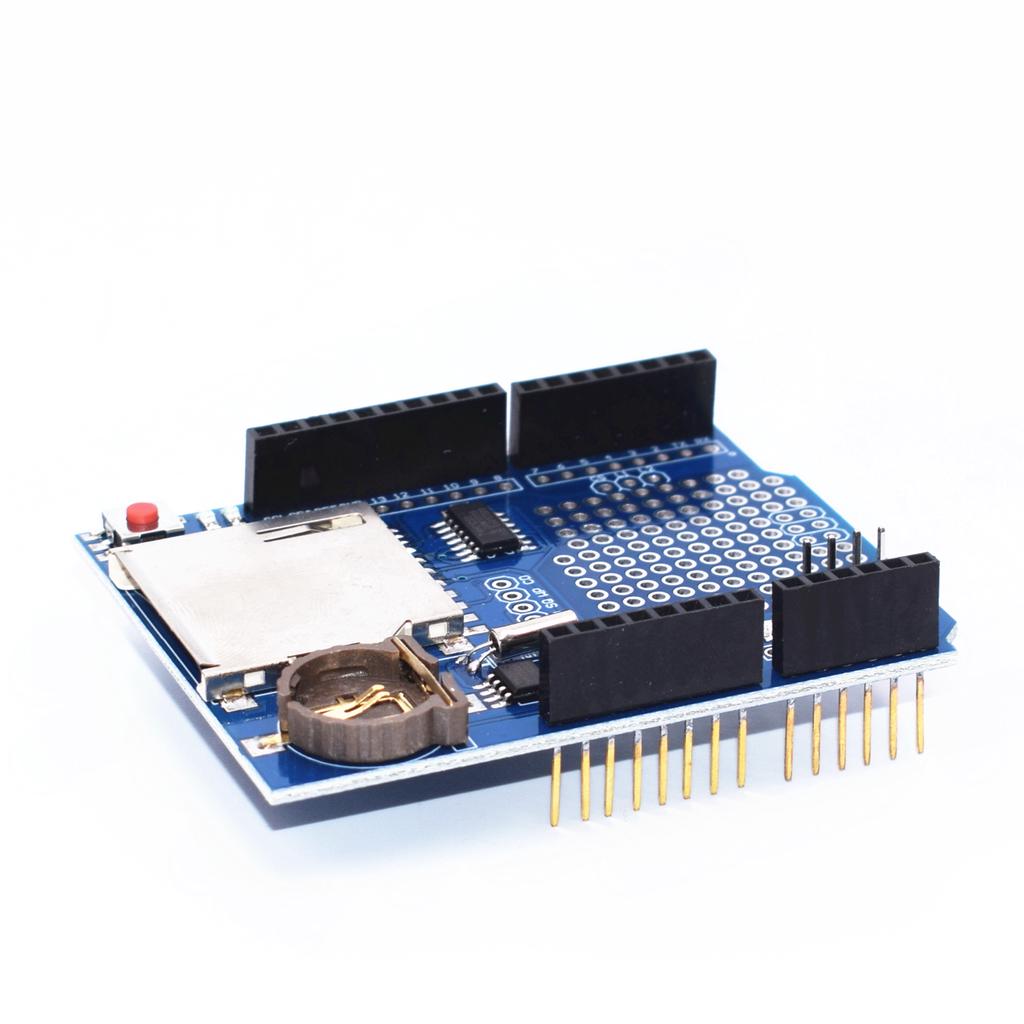

Logging Recorder Data Logger Module Shield V1.0

The Logging Recorder Data Logger Module Shield V1.0 is an Arduino shield that adds an SD card slot and a real-time clock to an Arduino Uno-style board, so your projects can save sensor readings to a file together with the date and time. A backup coin cell keeps the clock running when the Arduino is unplugged, and a prototyping area gives space to solder your own sensors and connectors.

Logging Recorder Data Logger Module Specifications

• Format: Arduino shield for Uno-style boards
• Storage: SD card slot for FAT16 or FAT32 formatted cards
• SD interface: SPI, chip select on D10, with 3.3 V level shifting for the card
• Real-time clock: DS1307 on the I2C bus (A4 = SDA, A5 = SCL on the Uno)
• Clock backup: CR1220 coin cell holder
• Extras: prototyping area for soldering parts
• Version: V1.0

Logging Recorder Data Logger Module Applications

• Weather and environment logging
• Recording solar panel or battery voltage over days
• Greenhouse temperature and humidity records
• School science experiments with time-stamped data
• Logging events such as door openings or visitor counts

What's in the Box

• 1 × data logger shield V1.0

Tip: Format the SD card as FAT32 (FAT16 for very small cards) and use the SD and RTClib libraries. Set the clock once from your sketch, fit the backup cell, and keep pin D10 free for the SD card.
