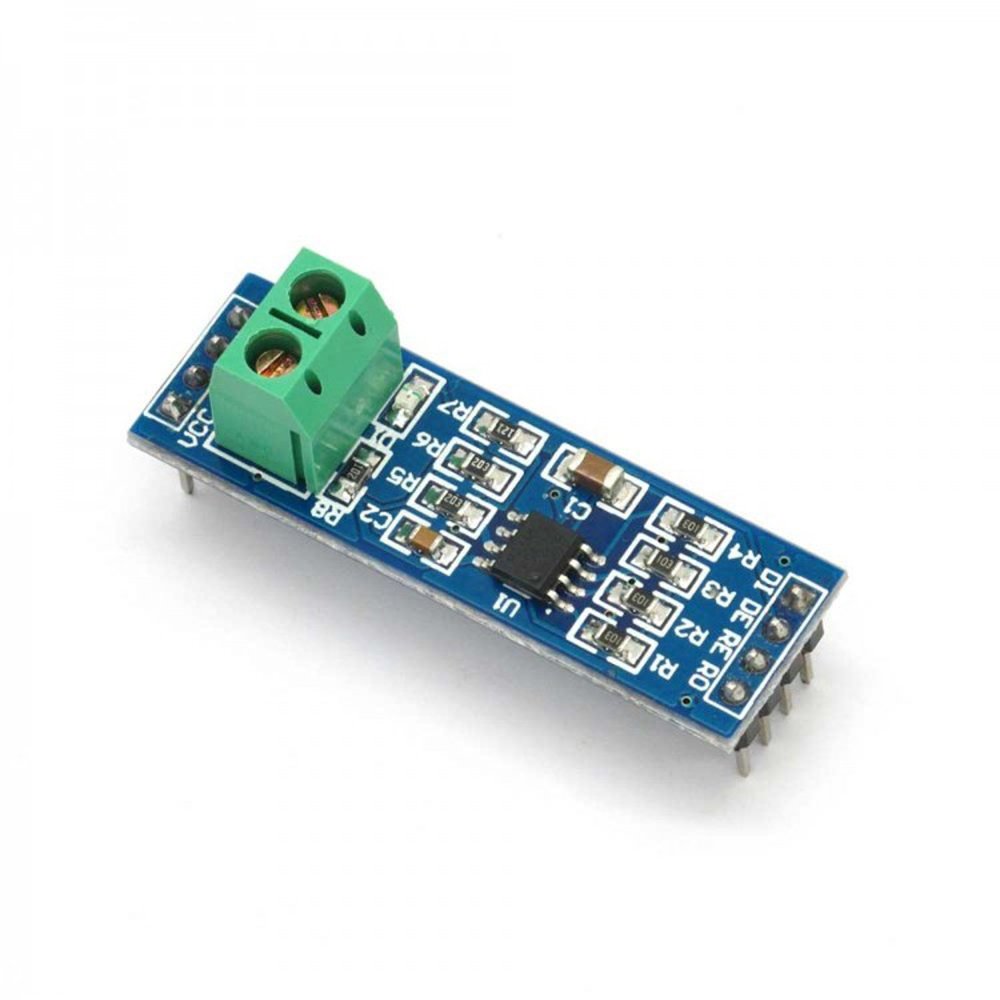

MAX485 TTL to RS485 Converter Module

The MAX485 TTL to RS485 Converter Module connects the TTL serial (UART) pins of a microcontroller to an RS-485 differential bus. RS-485 sends data over a twisted pair of wires, so it works over much longer cables and in noisier places than plain TTL serial. It is a low-cost way to add Modbus RTU, long-distance sensor links and multi-device networks to Arduino and ESP32 projects.

MAX485 TTL to RS485 Converter Module Specifications

• Transceiver chip: MAX485
• Supply voltage: 5 V
• Interface: TTL UART on one side, RS-485 differential pair (A and B) on the other
• Mode: half-duplex (sends or receives, one direction at a time)
• Data rate: up to 2.5 Mbps
• Bus size: up to 32 transceivers on one bus
• Control pins: RO (receiver out), RE (receiver enable, active low), DE (driver enable) and DI (driver in), plus VCC and GND

MAX485 TTL to RS485 Converter Module Applications

• Reading Modbus RTU energy meters, inverters and industrial sensors
• Long cable links between two Arduino or ESP32 boards
• Networks of several sensor nodes on one twisted-pair cable
• Controlling RS-485 devices such as drives, PLCs and DMX lighting

What's in the Box

• 1 × MAX485 TTL to RS485 converter module

Tip: Tie RE and DE together to one digital pin: set it HIGH to transmit and LOW to receive. Connect A to A and B to B on every device, use twisted-pair cable for long runs, and fit a 120 Ω termination resistor across A and B only at the two ends of the bus. The module runs on 5 V, so with a 3.3 V board such as the ESP32 check the RO output level before connecting it.
