MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System

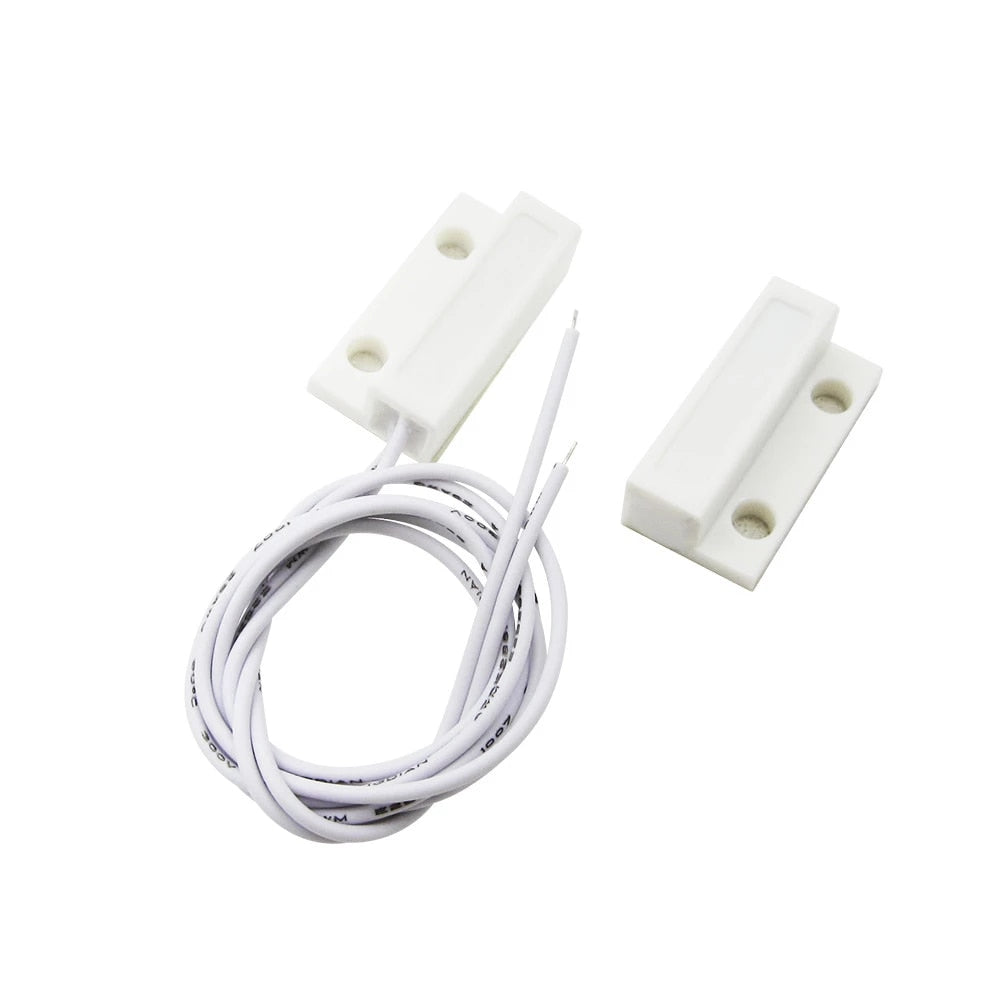

The MC-38 Wired Door Window Sensor is a magnetic reed switch for home alarm systems. It comes in two parts: a switch unit with wire leads that mounts on the door or window frame, and a magnet that mounts on the moving door or window. When the two parts are close together the contacts are closed, and when the door opens and the magnet moves away the contacts open, which an alarm panel, Arduino or ESP32 can detect.

MC-38 Wired Door Window Sensor Specifications

• Model: MC-38
• Type: wired magnetic reed switch
• Parts: switch unit with wires and a separate magnet unit
• Contact action: closed when the magnet is near, open when it moves away
• Connection: 2 wires
• Power: none needed, it is a passive switch

MC-38 Wired Door Window Sensor Applications

• Door and window alarms for homes, shops and offices
• DIY smart home sensors with ESP32 or ESP8266 that send phone alerts
• Monitoring cabinets, drawers and gates
• Turning lights on when a door opens

What's in the Box

• 1 × MC-38 switch unit with wires
• 1 × magnet unit

Tip: Connect one wire to a digital pin set as INPUT_PULLUP and the other to GND: the pin reads LOW when the door is closed and HIGH when it opens. Mount the two parts side by side, lined up and as close as possible when the door is shut.
