MEGA Proto Prototype Shield V3.0+170pts Breadboard

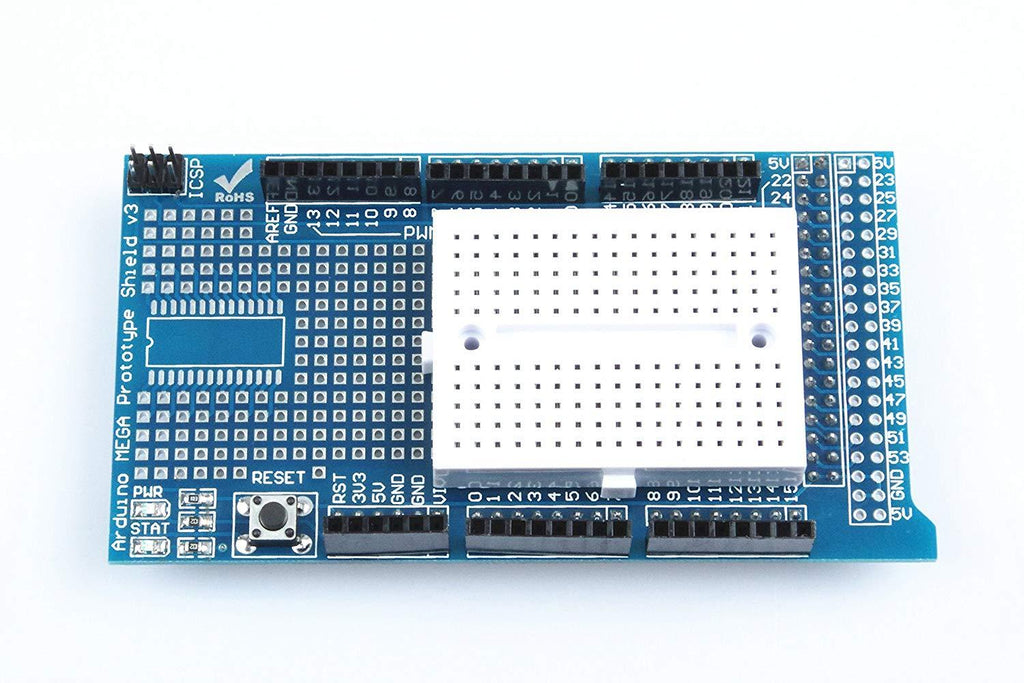

The MEGA Proto Prototype Shield V3.0 is a prototyping shield made for the Arduino Mega 2560. It sits on top of the Mega, brings the board's pins up to the shield and gives you a prototyping area to build your own circuit. This listing comes with a 170-point mini breadboard that fits on the shield, so you can test circuits without soldering and solder a permanent version later.

MEGA Proto Prototype Shield V3.0 Specifications

• Compatible board: Arduino Mega 2560 and Mega-format boards
• Version: V3.0
• Prototyping area: through-hole pads at 2.54 mm pitch for soldering parts
• Mini breadboard: 170 tie points, included
• Mounting: stacks on the Mega headers

MEGA Proto Prototype Shield V3.0 Applications

• Building custom shields for Arduino Mega projects
• Quick breadboard tests directly on top of the Mega
• Mounting sensors, LEDs, buttons and connectors close to the board
• Robotics and automation prototypes that use the Mega's many I/O pins
• University and school lab projects

What's in the Box

• 1 × MEGA prototype shield V3.0
• 1 × 170-point mini breadboard

Tip: Keep tall parts away from the USB and power jacks of the Mega so the shield sits flat. If the mini breadboard has an adhesive backing, peel it only when you are sure of its position, because it is hard to remove cleanly.
