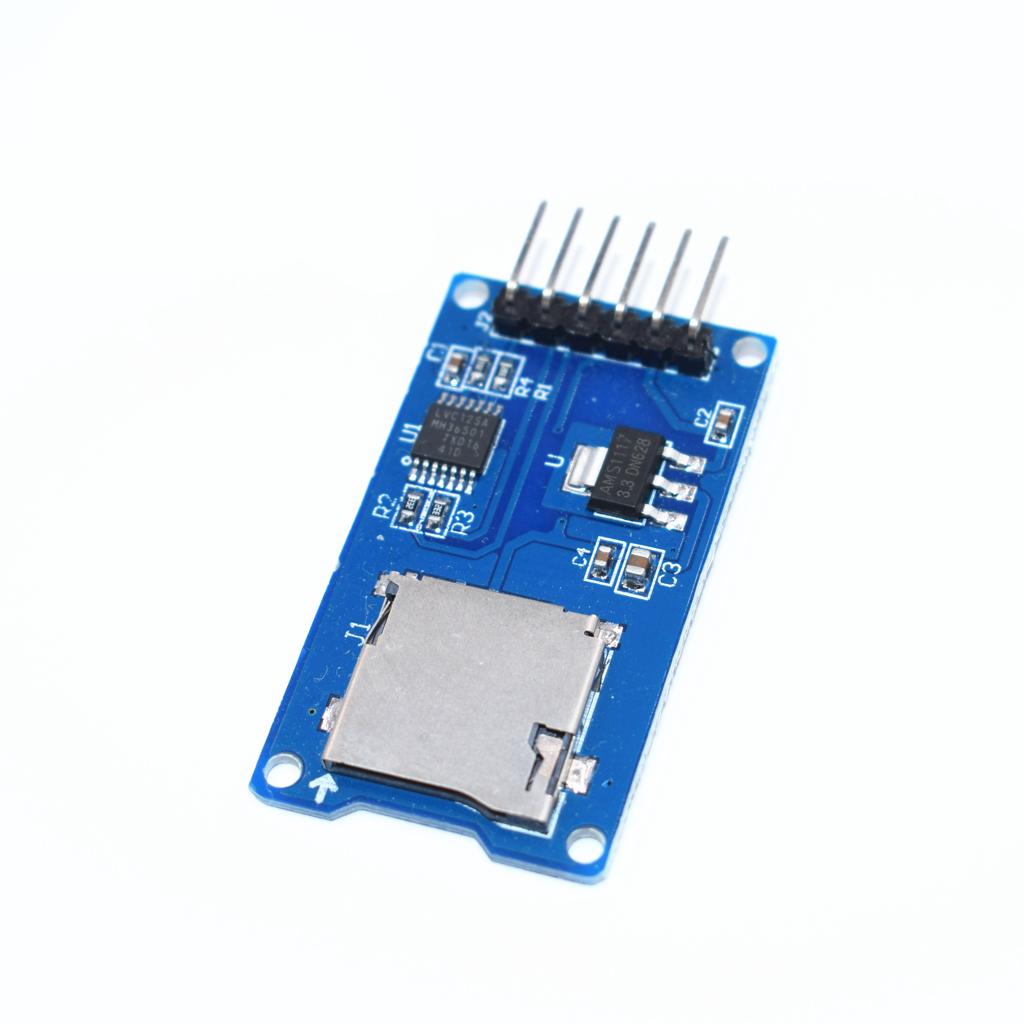

Micro SD Card Module Mini TF Card Read and Write 6pin

The Micro SD Card Module is a small read and write board for Micro SD (TF) memory cards with a 6-pin SPI connection. It lets an Arduino, ESP32 or other microcontroller save sensor readings, logs and settings to a card, or read files such as audio clips and configuration data. The card can later be opened on a computer to review or copy the data.

Micro SD Card Module Specifications

• Card type: Micro SD / TF card
• Interface: SPI
• Pins: 6 (GND, VCC, MISO, MOSI, SCK and CS)
• Function: read and write
• File system: FAT16 or FAT32 when used with the Arduino SD library
• Memory card: not included

Micro SD Card Module Applications

• Data loggers for temperature, humidity and other sensors
• Storing GPS tracks and time-stamped readings
• Playing audio files in sound projects
• Saving settings and configuration files
• School and university data-collection experiments

What's in the Box

• 1 × Micro SD card module (memory card not included)

Tip: Connect MOSI, MISO and SCK to your board's SPI pins (pins 11, 12 and 13 on an Arduino Uno) and CS to any digital pin set in your sketch. Format the card as FAT32 before use, and check the markings on the module for its supply voltage (3.3 V or 5 V) before powering it.
