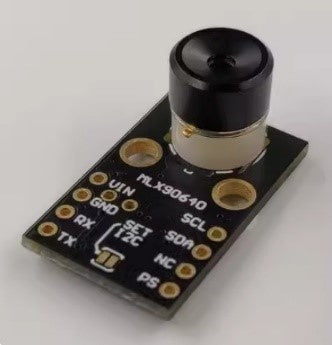

MLX90640ESF-BAA

The MLX90640ESF-BAA is a 32 × 24 pixel far-infrared thermal sensor array that measures the temperature of 768 points at once, so you can build a low-resolution thermal camera. The BAA version has a wide 110° × 75° field of view, and the sensor is factory calibrated and read over I²C, so it connects easily to an ESP32, Raspberry Pi, Teensy or other 3.3 V controller.

MLX90640ESF-BAA Specifications

• Resolution: 32 × 24 pixels (768 thermal pixels)
• Field of view: 110° × 75° (BAA version)
• Interface: I²C, up to 1 MHz
• Supply voltage: 3.3 V
• Object temperature range: −40 °C to 300 °C
• Refresh rate: programmable, 0.5 Hz to 64 Hz
• Package: 4-pin TO39

MLX90640ESF-BAA Applications

• DIY thermal cameras and heat maps
• Contactless temperature checks of motors, PCBs and electrical panels
• Presence detection and people counting
• HVAC, fire detection and smart building research projects

What's in the Box

• 1 × MLX90640ESF-BAA thermal sensor

Tip: Power it from 3.3 V and use I²C pull-up resistors, or a breakout board that has them. Calculating temperatures from a full frame needs more RAM than an Arduino Uno has, so use an ESP32, Teensy, Raspberry Pi or similar board.
