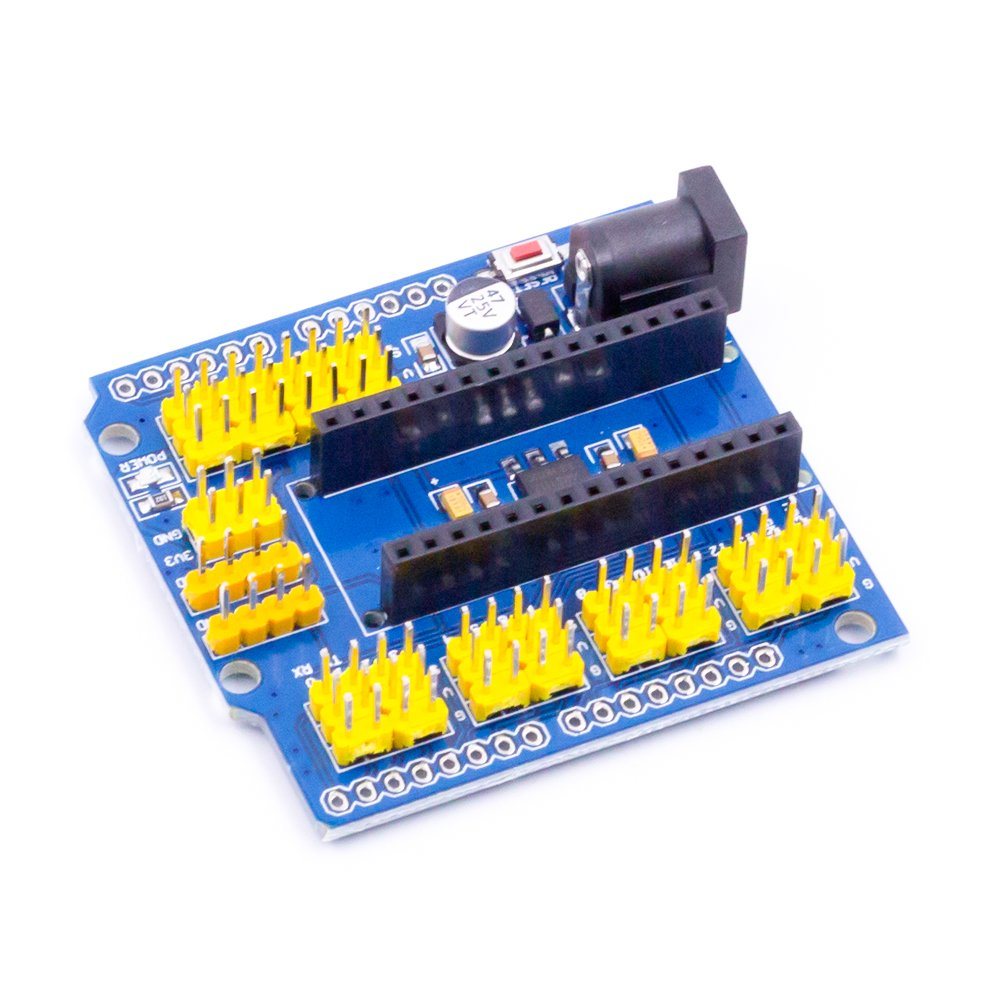

Nano Expansion Adapter Breakout Board IO Shield

The Nano Expansion Adapter Breakout Board is an IO shield for the Arduino Nano. You plug the Nano into the female headers on the board, and its digital, analog and power pins are brought out to larger, labelled connection points. This makes it much easier to connect sensors, servos, relays and modules without a breadboard, and to build a tidy, permanent controller for robots and automation projects.

Nano Expansion Adapter Breakout Board Specifications

• Compatible board: Arduino Nano V3.0 and compatible Nano boards
• Mounting: female headers for the Nano, no soldering needed
• Pins broken out: digital I/O, analog inputs, power and GND
• Type: expansion / breakout board (IO shield)

Nano Expansion Adapter Breakout Board Applications

• Wiring sensors and servos to an Arduino Nano without a breadboard
• Robot cars and small automation controllers
• Prototypes that need to survive moving and handling
• Classroom kits where the same Nano is reused between projects
• Home automation and IoT test setups

What's in the Box

• 1 × Nano expansion adapter breakout board (Arduino Nano not included)

Tip: Before pressing the Nano in, check that the pin labels on the shield match the Nano's pins (for example D13, RX and TX), because fitting it the wrong way round can damage both boards. If you power the shield from an external supply, keep within the voltage printed on the board.
