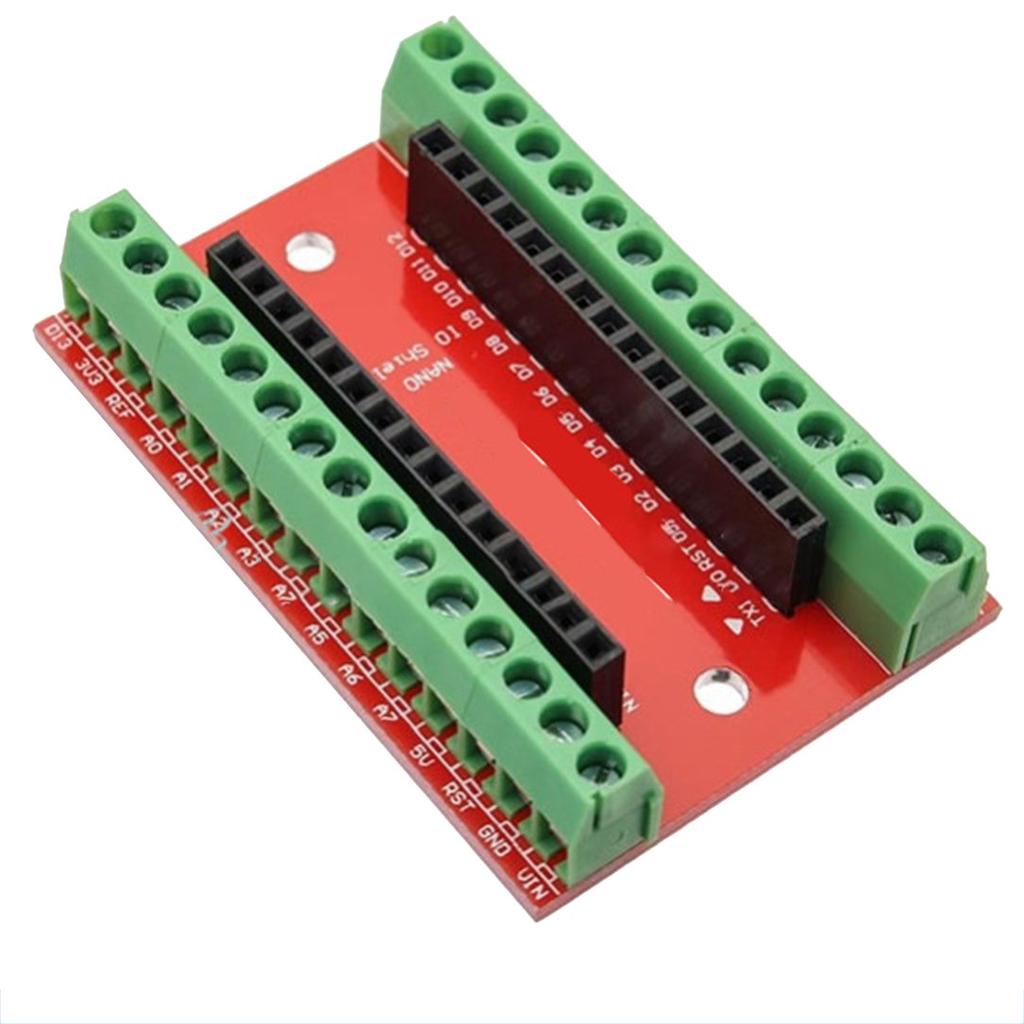

Nano extension board Nano IO shields

The Nano extension board is an IO shield for the Arduino Nano. Plug the Nano into its socket and the board breaks out the digital and analog pins to header pins with power and ground beside them, so you can connect sensors, servos and modules with jumper wires instead of a crowded breadboard.

Nano extension board Specifications

• Compatible board: Arduino Nano and Nano V3.0 compatible boards
• Mounting: female socket headers for the Nano
• Pin breakout: digital and analog I/O to male header pins
• Power headers: VCC and GND pins next to the signal pins
• Pitch: 2.54 mm, fits standard Dupont jumper wires and servo plugs

Nano extension board Applications

• Connecting several sensors and servos to one Nano
• Robot projects and small automation controllers
• Classroom setups where boards are wired and rewired often
• Semi-permanent projects without soldering

What's in the Box

• 1 × Nano extension board (Arduino Nano not included)

Tip: Match the pin labels on the Nano with the labels on the shield before pressing it in, because a reversed Nano can be damaged at power-up. When you drive several servos, use an external power supply rather than the USB power from your computer.
