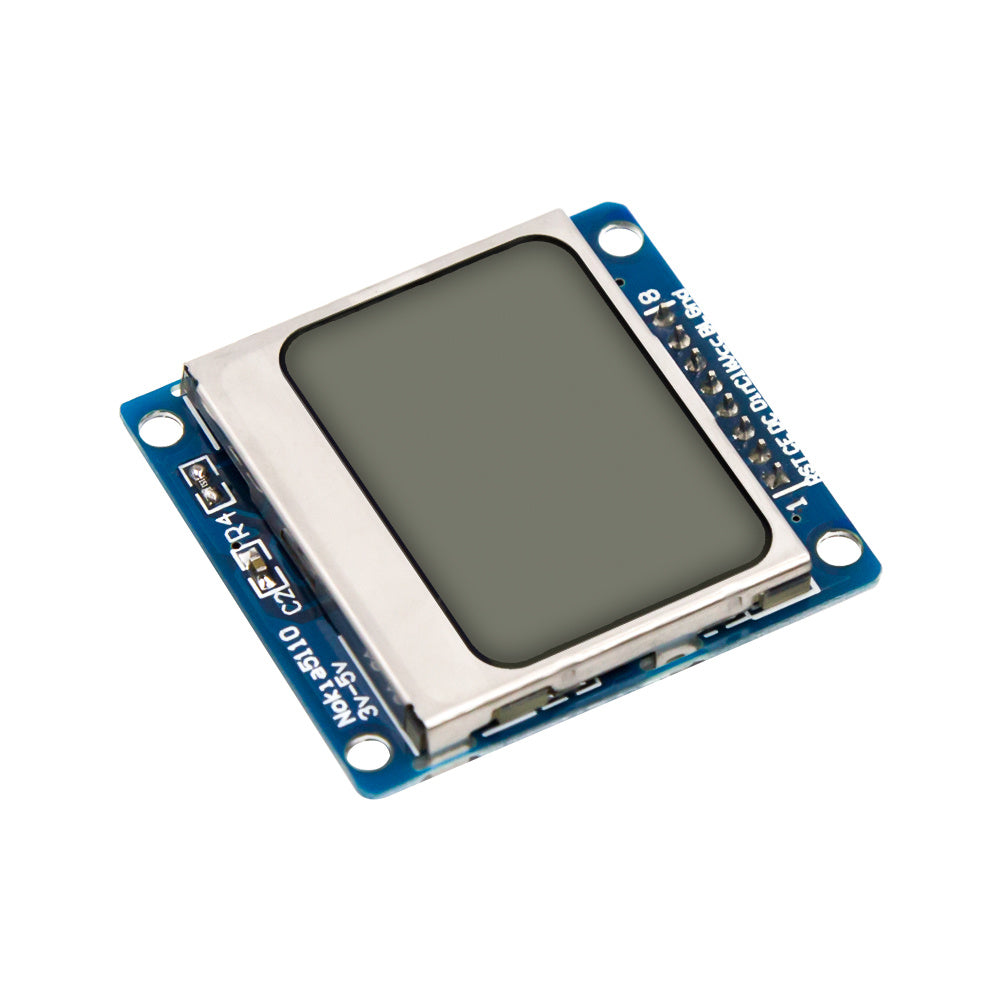

Nokia 5110 84x48 LCD Shield Module Blue Backlight

The Nokia 5110 84x48 LCD shield module is a small monochrome graphic display, originally made for the Nokia 5110 phone, mounted on a breakout board with a blue backlight. It shows text, numbers, simple graphics and icons at 84 × 48 pixels and uses very little power. It is driven by the well-known PCD8544 controller, so ready-made libraries are available for Arduino, ESP32 and Raspberry Pi.

Nokia 5110 84x48 LCD Specifications

• Resolution: 84 × 48 pixels, monochrome
• Controller: PCD8544
• Interface: serial, SPI-style (reset, chip enable, data/command, data in and clock lines)
• Logic and supply voltage: 3.3 V (the PCD8544 is rated 2.7–3.3 V)
• Backlight: blue LED with its own control pin
• Text capacity: about 6 lines of 14 characters with a 5 × 7 font

Nokia 5110 84x48 LCD Applications

• Showing sensor readings such as temperature, humidity or voltage
• Menus and status screens for Arduino and ESP32 projects
• Small games, clocks and timers
• Battery-powered gadgets that need a low-power display

What's in the Box

• 1 × Nokia 5110 84 × 48 LCD module with blue backlight

Tip: This is a 3.3 V display. With a 5 V Arduino, power it from the 3.3 V pin and use a level shifter or series resistors (about 1–10 kΩ) on the signal lines. If the screen looks blank or too dark, adjust the contrast setting in your library.
