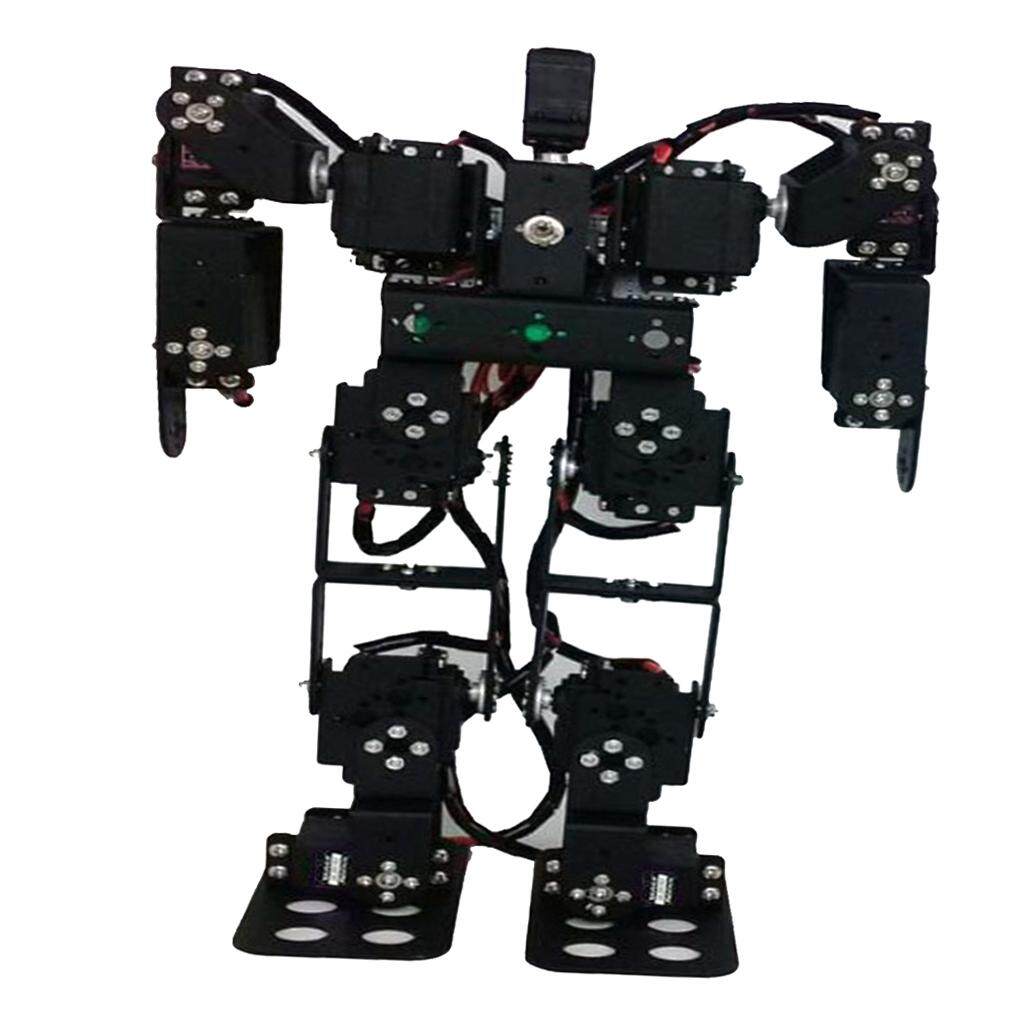

Not Assembly Full Set 17DOF Biped Robot Educational Robotic Kit with Metal Horn+17pcs MG996+Servo Horn

The 17DOF Biped Robot Educational Robotic Kit is an unassembled full set for building a two-legged humanoid robot with 17 degrees of freedom. It comes with 17 MG996 metal-gear servos plus metal and standard servo horns, so every joint has its own servo. Building and programming it teaches mechanical assembly, servo control and walking gaits, which makes it a strong project for university labs, robotics clubs and advanced students.

17DOF Biped Robot Specifications

• Robot type: biped (two-legged) humanoid
• Degrees of freedom: 17
• Servos: 17 × MG996 metal-gear servos
• Servo voltage: 4.8–7.2 V (MG996R datasheet)
• Servo torque: about 11 kg·cm at 6 V (MG996R datasheet)
• Horns: metal horns and servo horns
• Assembly: not assembled (DIY build)

17DOF Biped Robot Applications

• University robotics and mechatronics courses
• Learning walking gaits, balance and kinematics
• Robot dance, soccer and humanoid competitions
• Programming multi-servo motion with a servo controller

What's in the Box

• 1 × unassembled 17DOF biped robot frame set
• 17 × MG996 servo motors
• Metal servo horns and servo horns

Tip: Set every servo to its centre (90°) before fitting the horns, so the robot stands straight. The title lists no controller, so plan for a servo board with at least 17 channels and a 5–6 V supply rated for 10 A or more.

Orders placed before 14:00 are ready for pickup the same day. Delivery across Lebanon usually takes 1–3 working days.
