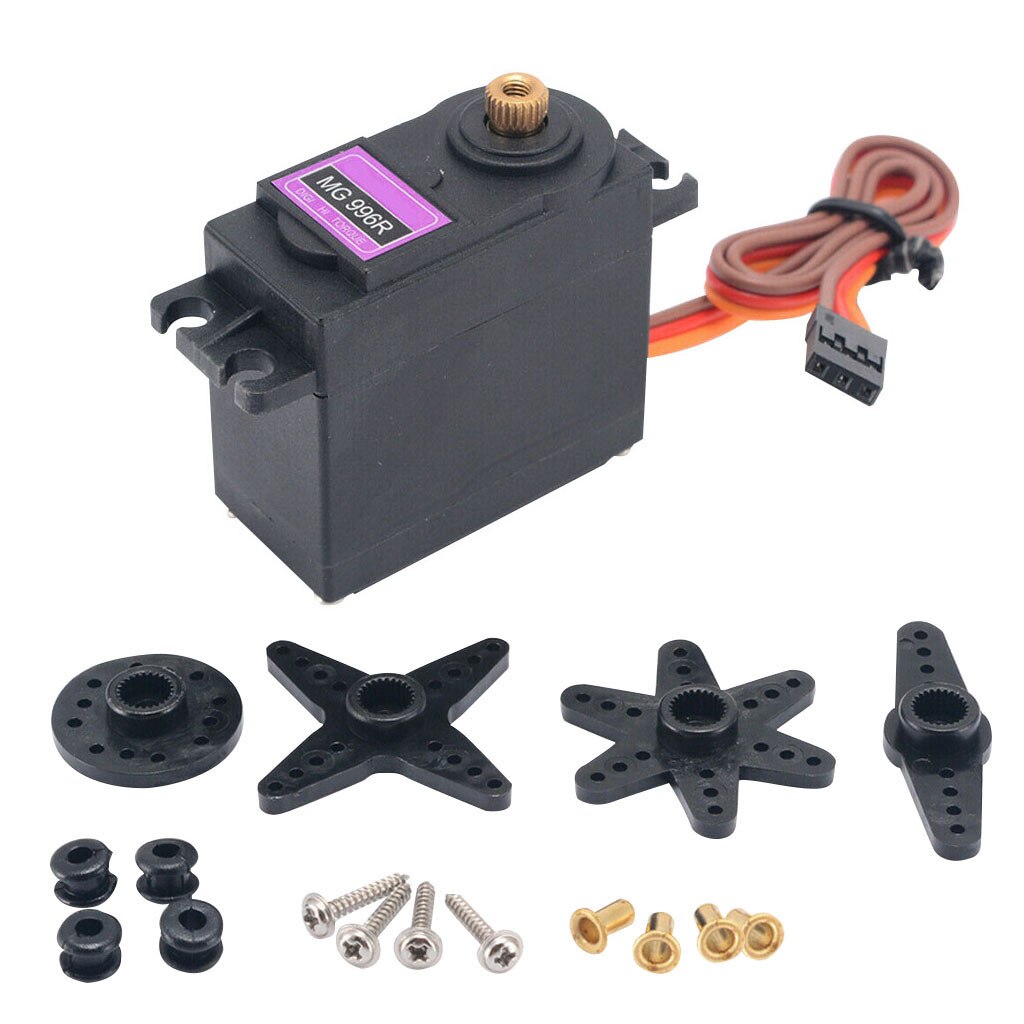

Servo MG996 13KG 180 Degree High Quality

The Servo MG996 is a high-torque, metal-gear servo motor that turns to a set angle across a 180° range and is sold with a 13 kg torque rating. It uses the standard 3-wire servo connector and 50 Hz PWM control, so it works with the Arduino Servo library, the ESP32 and servo driver boards. It is a common choice for robot arms, RC models and pan-tilt mounts that need more strength than a micro servo.

Servo MG996 Specifications

• Gears: metal
• Rotation: 180°
• Torque: 13 kg·cm (seller's rating; the original TowerPro MG996R datasheet lists 9.4 kg·cm at 4.8 V and 11 kg·cm at 6 V)
• Operating voltage: 4.8 V to 7.2 V
• Control signal: standard servo PWM, 50 Hz
• Wires: brown = GND, red = V+, orange = signal
• Weight: about 55 g

Servo MG996 Applications

• Robot arms and grippers
• Steering for RC cars and boats
• Pan-tilt mounts for cameras and sensors
• Animatronics and moving models
• Robotics competitions and STEM projects

What's in the Box

• 1 × MG996 servo motor

Tip: Do not power the MG996 from the Arduino 5 V pin: under load it can draw more than 2 A. Use a separate 5 V to 6 V supply and connect its ground to the Arduino ground so the control signal has a common reference.
