Servo SG90 360 degree high quality

The Servo SG90 360 degree is a continuous rotation version of the popular SG90 9 g micro servo. Instead of moving to a fixed angle like the standard 180° SG90, it turns all the way round in either direction, and the control signal sets its speed and direction. That makes it an easy, low-cost drive motor for small wheeled robots, turntables and moving models controlled by an Arduino or ESP32.

Servo SG90 360 degree Specifications

• Type: micro servo, continuous rotation (360°)
• Weight: about 9 g
• Operating voltage: 4.8 V to 5 V
• Control signal: PWM at 50 Hz; a pulse of about 1.5 ms stops the motor, shorter or longer pulses turn it one way or the other
• Wires: brown GND, red +5 V, orange signal
• Position control: none; it sets speed and direction, not angle

Servo SG90 360 degree Applications

• Drive wheels for small robots and robot cars
• Rotating platforms, turntables and display stands
• Conveyor, winch and crane models
• Arduino, ESP32 and micro:bit STEM projects

What's in the Box

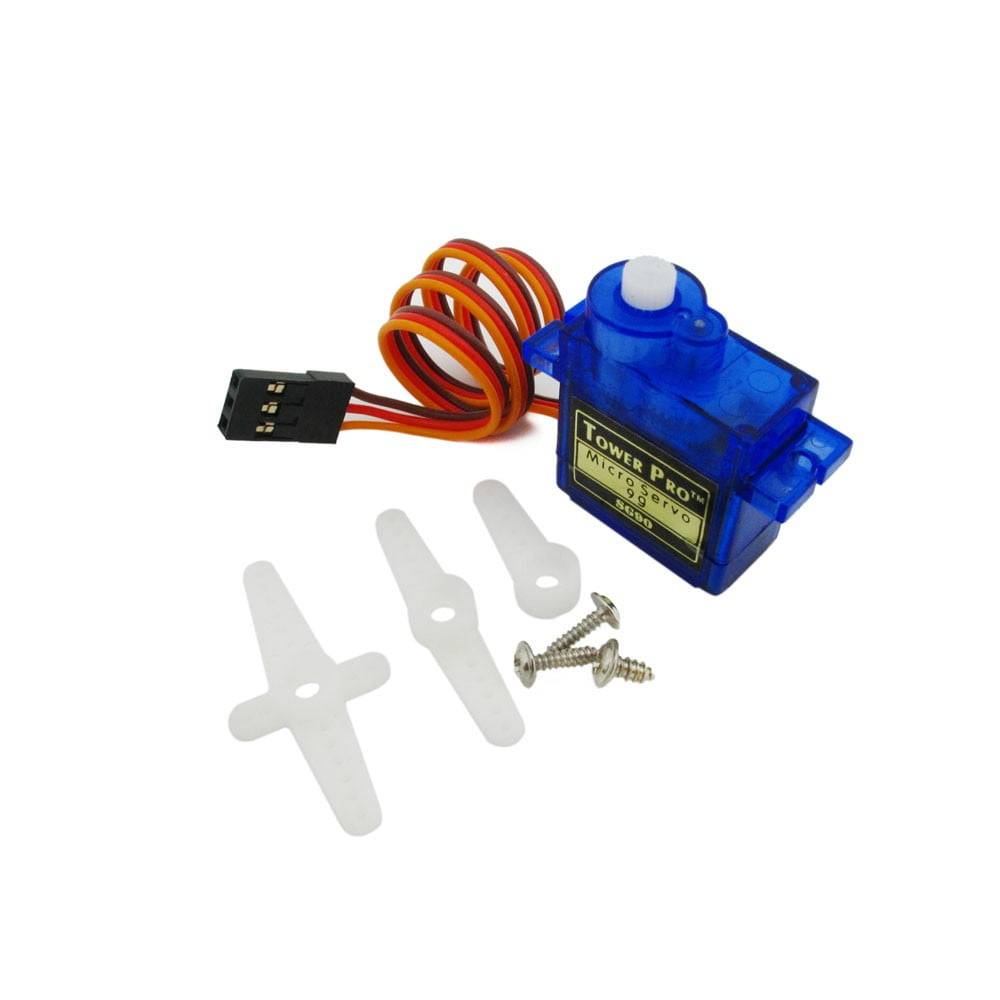

• 1 × SG90 360 degree continuous rotation servo

Tip: With the Arduino Servo library, write(90) stops the motor, values below 90 turn it one way and values above 90 the other way; the exact stop point can vary a little between units, so test values around 90. Power the servos from a separate 5 V supply when driving more than one, and connect its GND to the Arduino GND.
