NTC Temp Sensor Thermistor 10K + Cable 1m

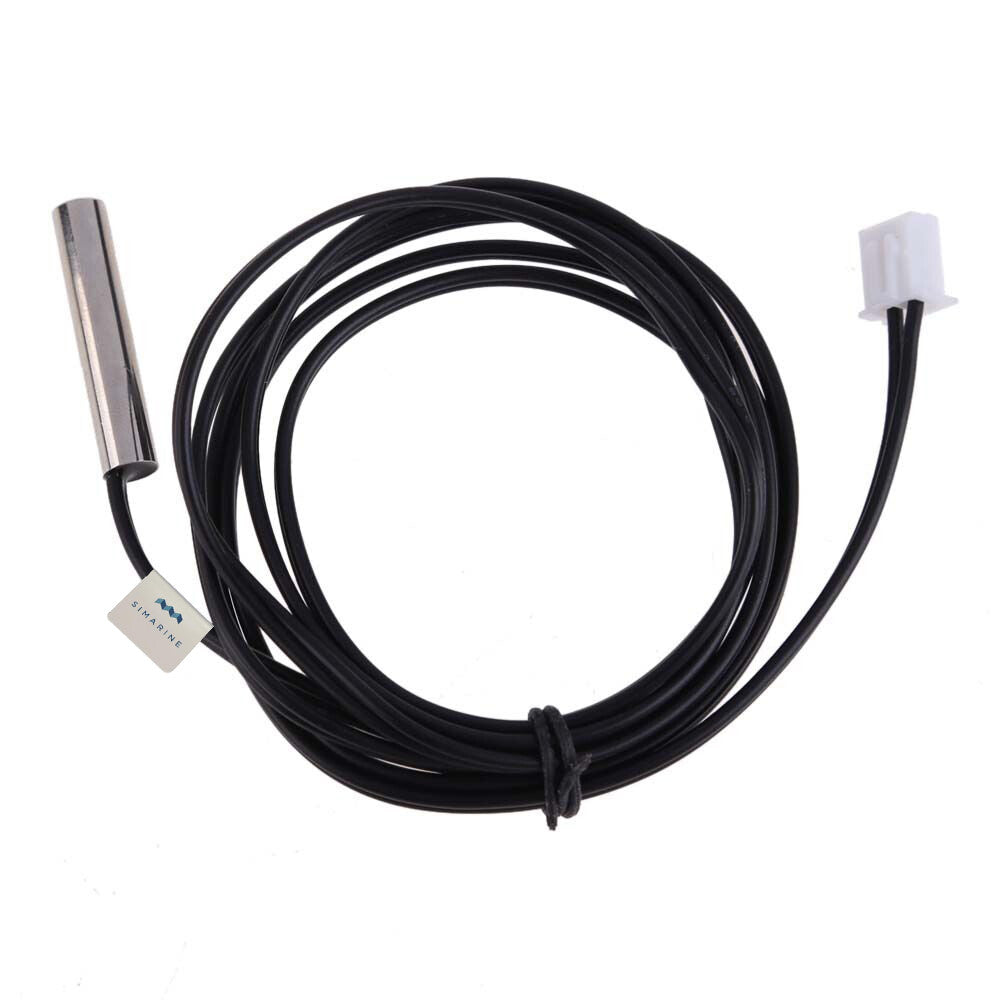

The NTC Temp Sensor Thermistor 10K is a 10 kΩ NTC thermistor fitted on a 1 m cable, so you can place the sensing tip away from your circuit board. NTC means negative temperature coefficient: the resistance falls as the temperature rises. Read it with a simple voltage divider and an analog input to measure temperature in Arduino and ESP32 projects.

NTC Temp Sensor Thermistor 10K Specifications

• Sensor type: NTC thermistor (resistance decreases as temperature increases)
• Nominal resistance: 10 kΩ, normally specified at 25 °C
• Cable length: 1 m
• Output: analog resistance, read through a voltage divider
• Works with: Arduino, ESP32, Raspberry Pi Pico and other boards with an analog input

NTC Temp Sensor Thermistor 10K Applications

• Measuring temperature at a distance from the main board
• Thermostats and temperature-controlled fans or heaters
• Monitoring battery packs, heat sinks and enclosures
• Room, greenhouse and fridge temperature logging
• School and university sensor experiments

What's in the Box

• 1 × 10 kΩ NTC temperature sensor with 1 m cable

Tip: Connect the thermistor in series with a fixed 10 kΩ resistor between 3.3 V or 5 V and GND and read the midpoint with an analog pin; at 25 °C the reading is about half the supply. Convert the reading to °C with the Beta or Steinhart–Hart equation, using the thermistor's B value from the supplier for the best accuracy.
