PAM8403 digital amplifier board 2*3W Class D

Part no. 10060865

$1.00
Sold out
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

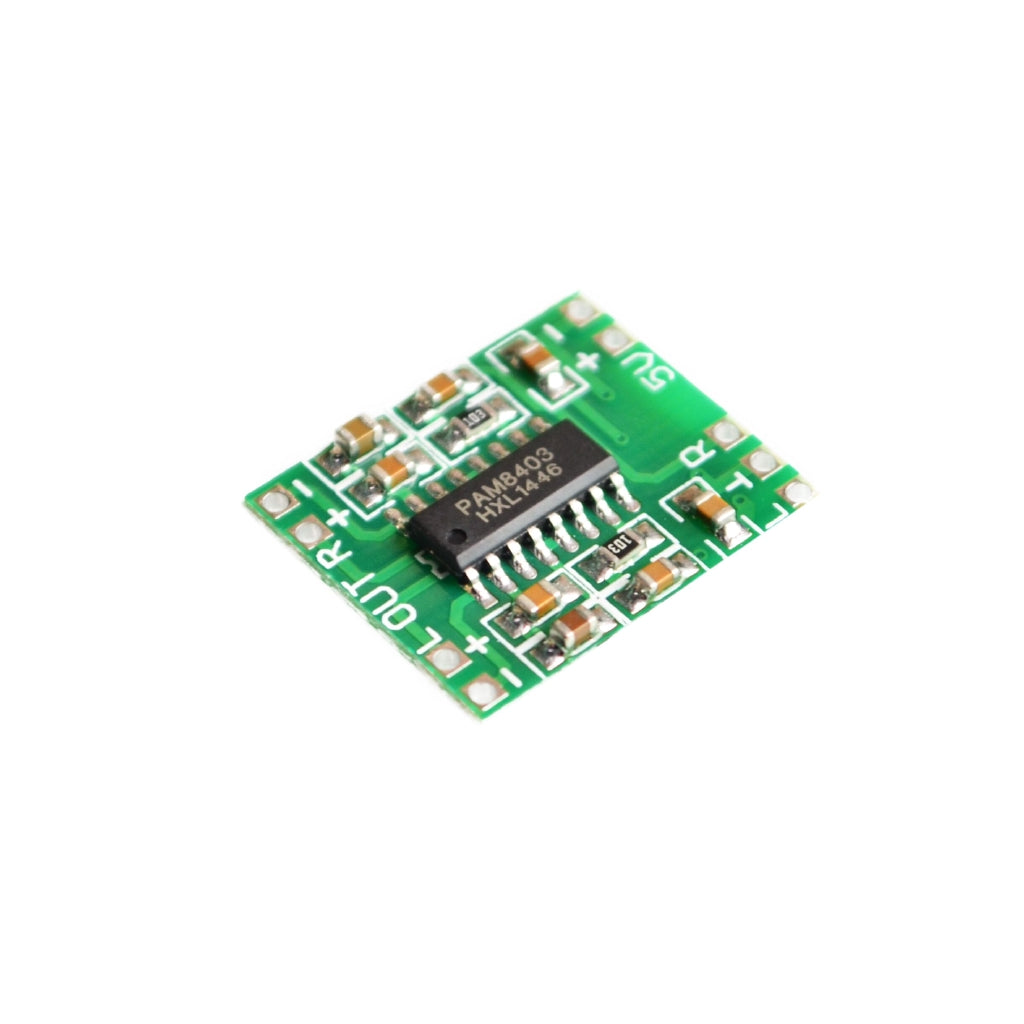

The PAM8403 digital amplifier board is a small stereo Class D audio amplifier that delivers up to 3 W per channel (2 × 3 W) from a 5 V supply. Class D switching makes it very efficient, so it runs cool without a heat sink and works well from USB power or batteries. Use it to drive small speakers from an MP3 module, phone, Arduino, ESP32 or Raspberry Pi.

PAM8403 digital amplifier board Specifications

  • Amplifier IC: PAM8403
  • Channels: 2 (stereo, left and right)
  • Output power: up to 3 W per channel into 4 Ω at 5 V
  • Supply voltage: 2.5 V to 5.5 V (5 V typical)
  • Amplifier class: filterless Class D, up to about 90% efficiency
  • Speakers: 4 Ω or 8 Ω
  • Audio input: left, right and ground

PAM8403 digital amplifier board Applications

  • DIY USB and portable speakers
  • Adding sound to Arduino, ESP32 and Raspberry Pi projects
  • Amplifying MP3 player and audio modules
  • Toys, doorbells and alarm sounds
  • Computer and phone speaker upgrades

What's in the Box

  • 1 × PAM8403 2 × 3 W Class D amplifier board

Tip: The outputs are bridged (BTL), so never connect a speaker terminal to ground or join the left and right outputs together. Keep the supply at 5 V and never above 5.5 V, and use a clean supply to avoid hum.
