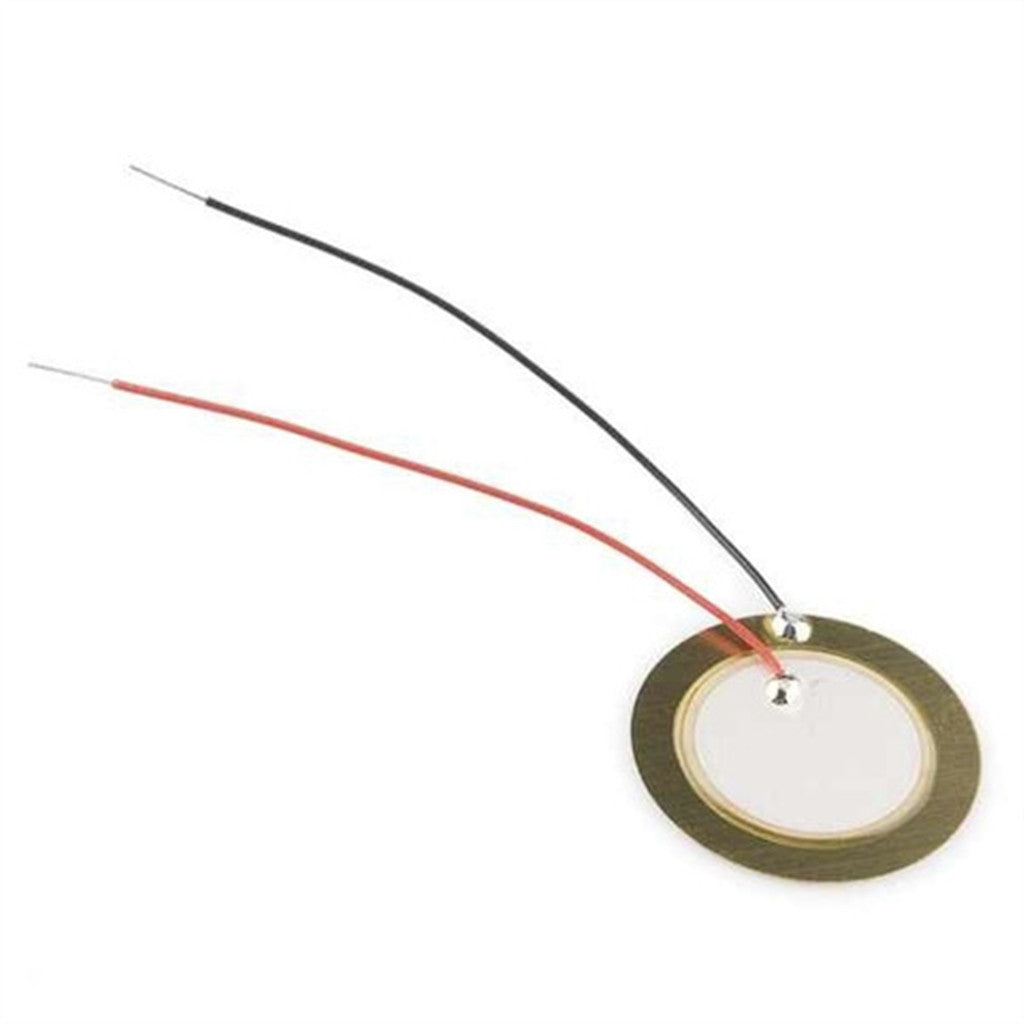

Piezo Element - D:20mm

The Piezo Element - D:20mm is a bare piezoelectric disc with a diameter of 20 mm. It works both ways: drive it with an alternating or square-wave signal and it produces sound, or tap and flex it and it produces a small voltage you can measure. That makes it a low-cost part for beeps and simple melodies as well as knock, tap and vibration sensing in Arduino projects.

Piezo Element - D:20mm Specifications

• Type: piezoelectric element, bare disc with no built-in oscillator
• Diameter: 20 mm
• Sound: needs an AC or square-wave drive signal, such as the Arduino tone() function
• Sensing: generates a voltage when bent, tapped or vibrated
• Pack size: 1 piece

Piezo Element - D:20mm Applications

• Knock and tap sensors, such as secret-knock door locks
• Vibration detection on machines and doors
• Beepers, alarms and simple melodies
• Electronic drum pads and touch triggers
• Physics and electronics experiments on the piezoelectric effect

What's in the Box

• 1 × 20 mm piezo element

Tip: As a sensor, connect the piezo between an analog input and GND with a 1 MΩ resistor in parallel to bleed off the charge; a hard knock can produce voltage spikes, so keep taps gentle or add a protection diode. As a sounder, fixing the disc to a panel or over a small cavity makes it much louder.
