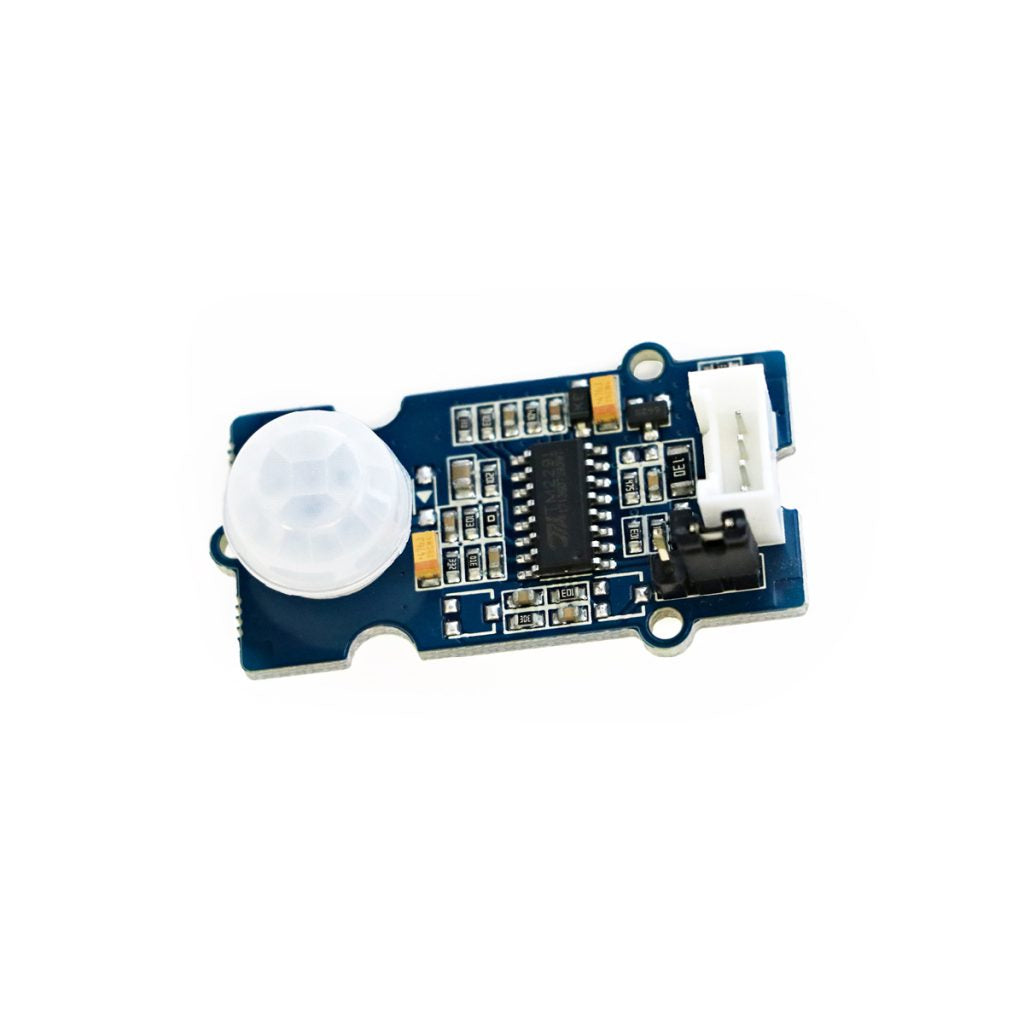

PIR Motion Sensor Grove

The PIR Motion Sensor Grove module detects people and animals moving in front of it by sensing changes in infrared heat. It has a Grove connector, so it plugs into a Grove Base Shield or Grove-compatible board with one cable and no soldering, and its signal pin goes HIGH when motion is detected, which makes it easy to read with a single digital input.

PIR Motion Sensor Grove Specifications

• Operating voltage: 3–5 V, for 3.3 V and 5 V boards
• Sensor: passive infrared (PIR)
• Detection angle: 120°
• Detection distance: up to 6 m (3 m by default)
• Holding time: adjustable from 0.3 to 25 s
• Output: digital, SIG pin goes HIGH when motion is detected
• Interface: Grove 4-pin connector
• Size: 20 × 40 mm

PIR Motion Sensor Grove Applications

• Automatic lights for rooms, stairs and corridors
• Security alarms and intruder detection
• Energy-saving switches for fans and displays
• Presence detection and visitor counting
• Grove classroom kits and STEM projects

What's in the Box

• 1 × PIR Motion Sensor Grove module

Tip: Connect the module to a digital Grove port and read the SIG pin with digitalRead(); no library is needed. Give the sensor a short settling time after power-up, and keep it away from heaters, air vents and direct sunlight, which can cause false triggers.
