PIR Sensor Mini HC-SR505

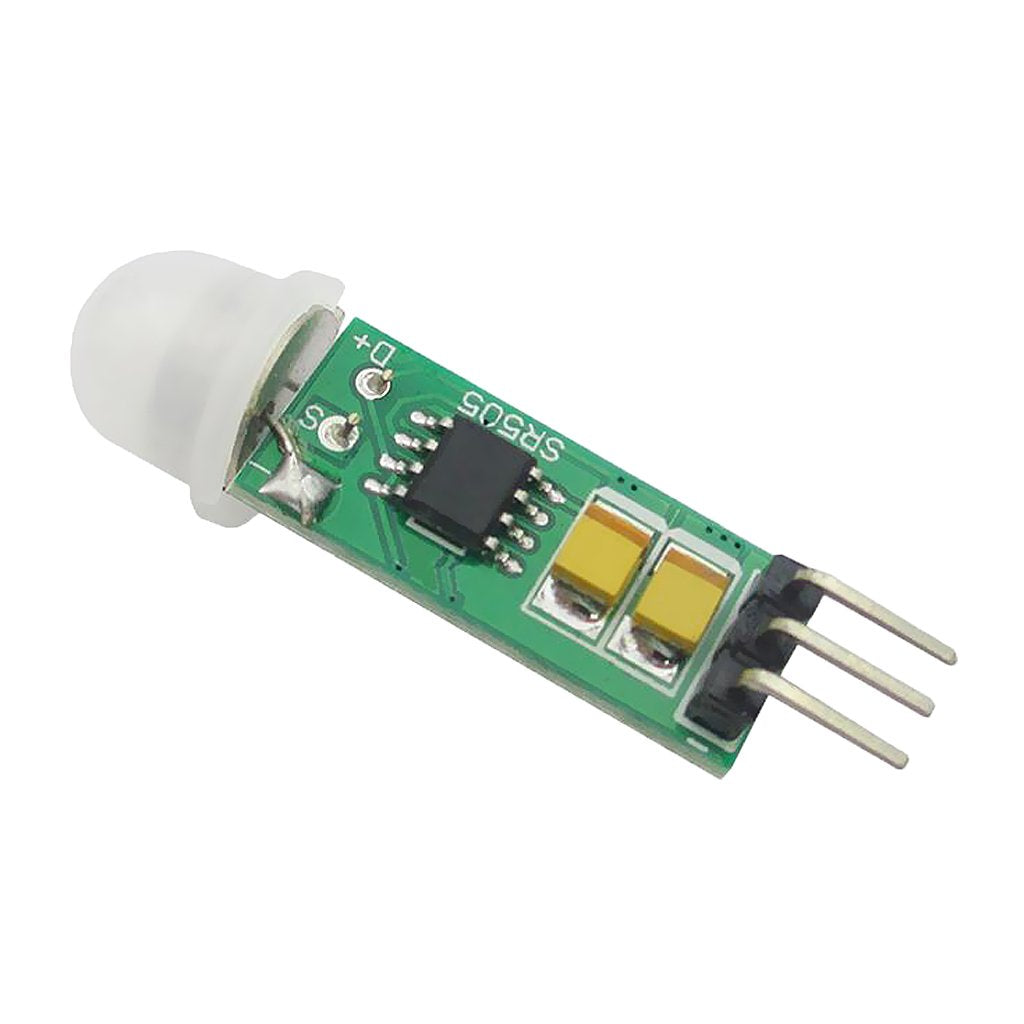

The PIR Sensor Mini HC-SR505 is a very small passive infrared motion sensor that detects people moving within about 3 m. Its output goes HIGH when motion is seen and stays on for about 8 seconds, restarting the timer while movement continues. With a very low standby current and a board of only 10 × 23 mm, it fits compact and battery-powered projects where the larger HC-SR501 would not.

PIR Sensor Mini HC-SR505 Specifications

• Sensor: pyroelectric (passive infrared) sensor with a 10 mm lens
• Supply voltage: 4.5 V to 20 V DC
• Standby current: below 60 µA
• Output: digital, HIGH when motion is detected
• Delay time: about 8 s, re-triggering while motion continues
• Detection range: up to about 3 m
• Detection angle: cone of less than 100°
• Board size: about 10 × 23 mm
• Pins: 3 (power, output, ground)

PIR Sensor Mini HC-SR505 Applications

• Automatic lights for cupboards, stairs and corridors
• Security alarms and intruder detection
• Battery-powered motion triggers for cameras and buzzers
• Occupancy detection in smart home projects
• Displays and devices that wake up when someone approaches

What's in the Box

• 1 × HC-SR505 mini PIR motion sensor module

Tip: The HC-SR505 has no adjustment trimmers, so the delay and sensitivity are fixed. Give it a short time to settle after power-up, and mount it away from heaters, air conditioners and direct sunlight to avoid false triggers.
