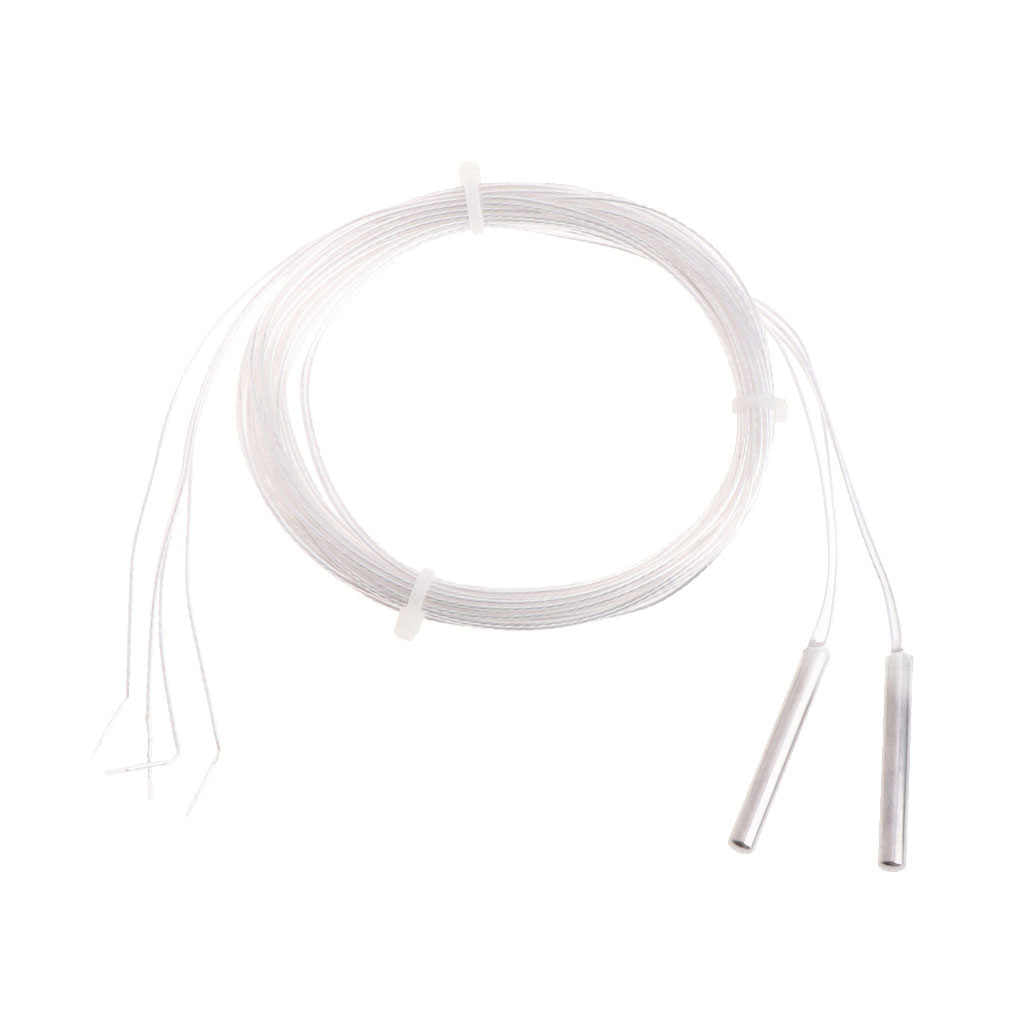

Platinum resistance heat resistance temperature probe PT1000 high precision temperature sensors

This platinum resistance temperature probe PT1000 is an RTD (resistance temperature detector) whose resistance rises steadily with temperature, starting from 1000 Ω at 0 °C. Platinum RTDs are known for accuracy, long-term stability and an almost linear response, and the higher 1000 Ω value of the PT1000 makes it less sensitive to lead-wire resistance than a PT100. It suits industrial controllers, heating systems and precise Arduino measurements.

Temperature probe PT1000 Specifications

• Sensor type: PT1000 platinum RTD
• Nominal resistance: 1000 Ω at 0 °C
• Temperature coefficient: about 3.85 Ω per °C on the standard IEC 60751 curve (alpha 0.00385)
• Resistance at 100 °C: about 1385 Ω
• Output: resistance, read through an RTD converter or temperature controller

Temperature probe PT1000 Applications

• Temperature inputs for industrial controllers and PLCs
• Boilers, solar water heaters and heating systems
• HVAC and refrigeration monitoring
• Laboratory and test equipment
• Arduino and ESP32 projects with a MAX31865 RTD module

What's in the Box

• 1 × PT1000 platinum resistance temperature probe

Tip: For accurate readings use an RTD converter such as the MAX31865 set up for PT1000 (with a 4.3 kΩ reference resistor), or the PT1000 input of a temperature controller. Keep the measuring current low, around 0.1–0.3 mA, to avoid self-heating errors.
