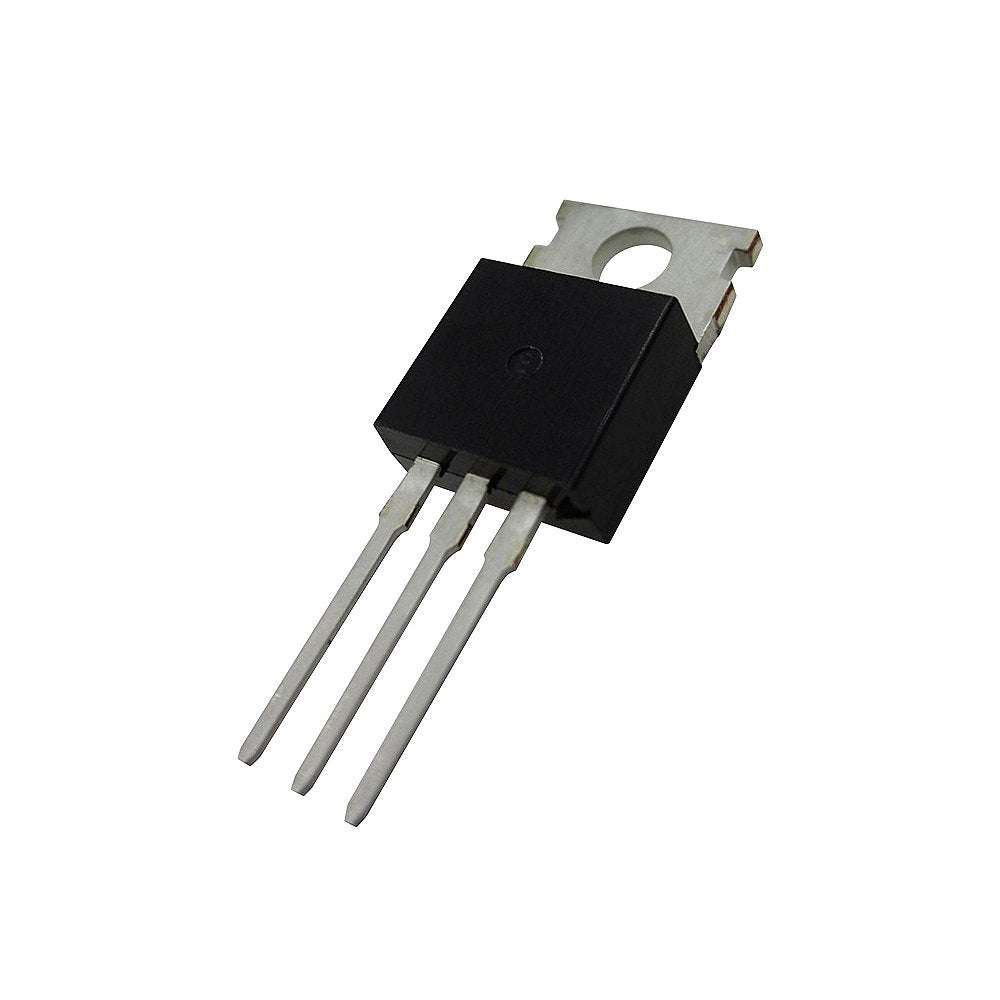

Power MOSFET P60NF06 N-Channel 60V 60A

The Power MOSFET P60NF06 (STP60NF06) is an N-channel power MOSFET rated for 60 V and 60 A, in a TO-220 package. Its low on-resistance of 16 mΩ maximum keeps heat down when switching large currents, which makes it a good choice for DC motor control, 12 V and 24 V LED strips, inverters, battery systems and DC-DC converters.

Power MOSFET P60NF06 Specifications

• Type: N-channel enhancement-mode power MOSFET
• Drain-source voltage (VDS): 60 V
• Continuous drain current: 60 A at 25 °C case temperature, with a suitable heatsink
• On-resistance (RDS(on)): 16 mΩ maximum at VGS = 10 V
• Power dissipation: 110 W with the case at 25 °C
• Gate threshold voltage: 2–4 V
• Gate-source voltage: ±20 V maximum
• Package and pinout: TO-220; gate, drain, source from left to right facing the front; the metal tab is the drain

Power MOSFET P60NF06 Applications

• Low-side switching of DC motors, pumps and solenoids
• PWM control of LED strips and heaters
• Inverter, UPS and DC-DC converter power stages
• Battery protection circuits and load switches
• Robotics and automation projects with a gate driver

What's in the Box

• 1 × P60NF06 N-channel MOSFET

Tip: The P60NF06 is not a logic-level MOSFET: it needs about 10 V on the gate to reach its rated on-resistance, so use a gate driver or a transistor stage when controlling it from a 5 V or 3.3 V microcontroller. Add a 10 kΩ pull-down from gate to source, and a flyback diode across motors and coils.
