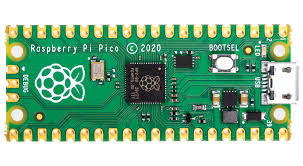

Raspberry Pi Pico 2MB

The Raspberry Pi Pico 2MB is a low-cost microcontroller board built around the RP2040 chip designed by Raspberry Pi, with 2 MB of onboard flash memory. It is programmed over USB in MicroPython, C/C++ or the Arduino IDE, which makes it a good choice for beginners, students and makers building sensors, robots and USB gadgets.

Raspberry Pi Pico 2MB Specifications

• Microcontroller: RP2040, dual-core Arm Cortex-M0+ up to 133 MHz
• Memory: 264 KB SRAM, 2 MB QSPI flash
• GPIO: 26 multi-function pins, 3.3 V logic
• Analog inputs: 3 × 12-bit ADC
• Interfaces: 2 × UART, 2 × SPI, 2 × I2C, 16 PWM channels
• PIO: 8 programmable I/O state machines
• USB: micro-USB, USB 1.1 device and host
• Power input: 1.8–5.5 V on VSYS
• Size: 21 × 51 mm, castellated edges for soldering onto a PCB

Raspberry Pi Pico 2MB Applications

• Learning MicroPython and embedded programming
• Sensor reading, data logging and home automation
• Robots, motor control and LED projects
• USB keyboards, macro pads and custom HID devices

What's in the Box

• 1 × Raspberry Pi Pico board

Tip: To load new firmware, hold the BOOTSEL button while plugging in the USB cable; the Pico appears as a USB drive and you can drag a UF2 file onto it. The GPIO pins are 3.3 V only, so do not connect 5 V signals directly.
