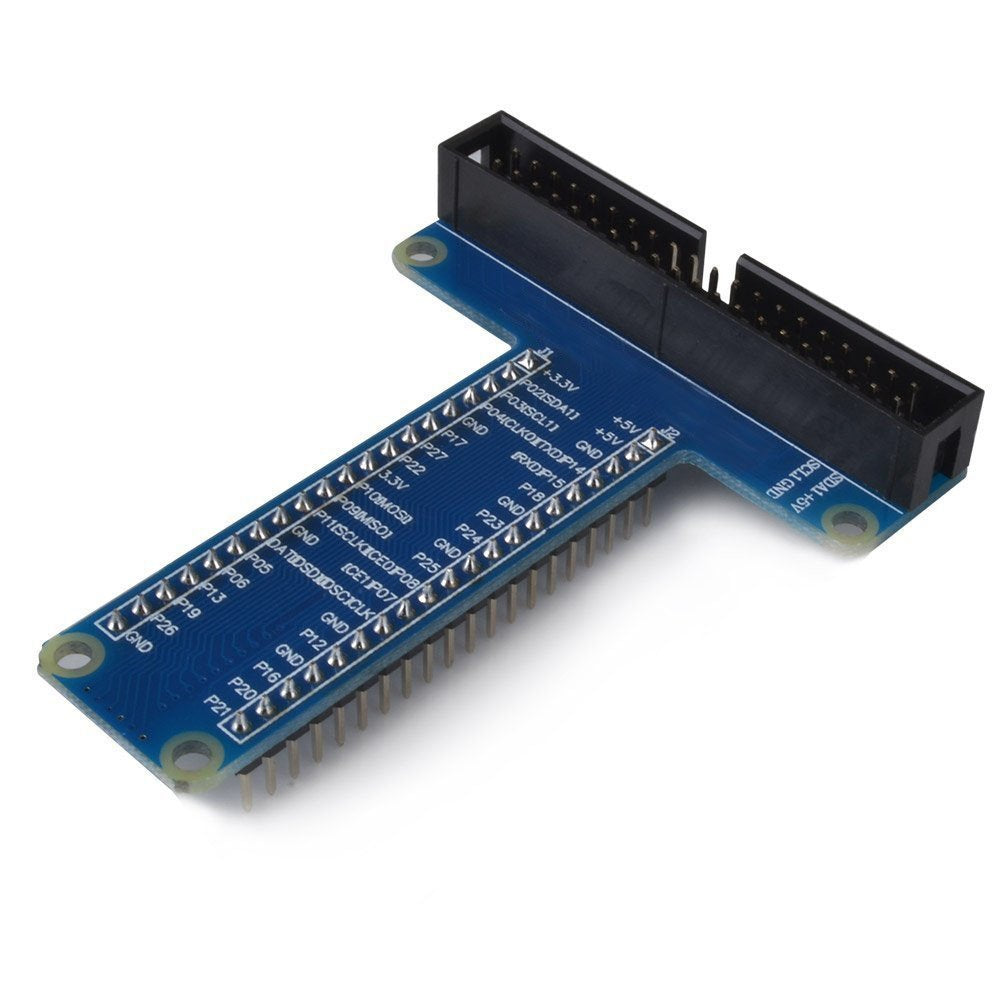

Rpi GPIO Breakout T-Cobbler Plus V2.2

The Rpi GPIO Breakout T-Cobbler Plus V2.2 is a T-shaped breakout board that brings all 40 GPIO pins of a Raspberry Pi onto a solderless breadboard. It plugs across the centre channel of the breadboard and connects to the Pi with a 40-pin ribbon cable, so you can wire LEDs, buttons, sensors and modules to clearly labelled rows instead of counting pins on the Pi header.

Rpi GPIO Breakout T-Cobbler Plus Specifications

• Pins: 40 (2 × 20), matching the Raspberry Pi GPIO header
• Shape: T-shaped, straddles the centre channel of a breadboard
• Pin labels: power, ground and GPIO names printed next to each pin
• Pitch: 2.54 mm (0.1 in)
• Connection to the Pi: 40-pin header for a ribbon cable
• Compatible with: Raspberry Pi models with a 40-pin header (A+, B+, 2, 3, 4, 5 and Zero with header)

Rpi GPIO Breakout T-Cobbler Plus Applications

• Prototyping Raspberry Pi circuits on a breadboard
• Learning GPIO programming with Python
• Connecting I2C, SPI and UART sensors and modules
• Classroom and workshop experiments

What's in the Box

• 1 × T-Cobbler Plus V2.2 GPIO breakout board

Tip: Fit the ribbon cable so pin 1 (the striped wire) lines up with pin 1 on both the Pi and the breakout; a reversed cable can put 5 V on the wrong pins. Remember the Raspberry Pi GPIO pins work at 3.3 V and are not 5 V tolerant.
