RS232 to TTL Serial Interface Module

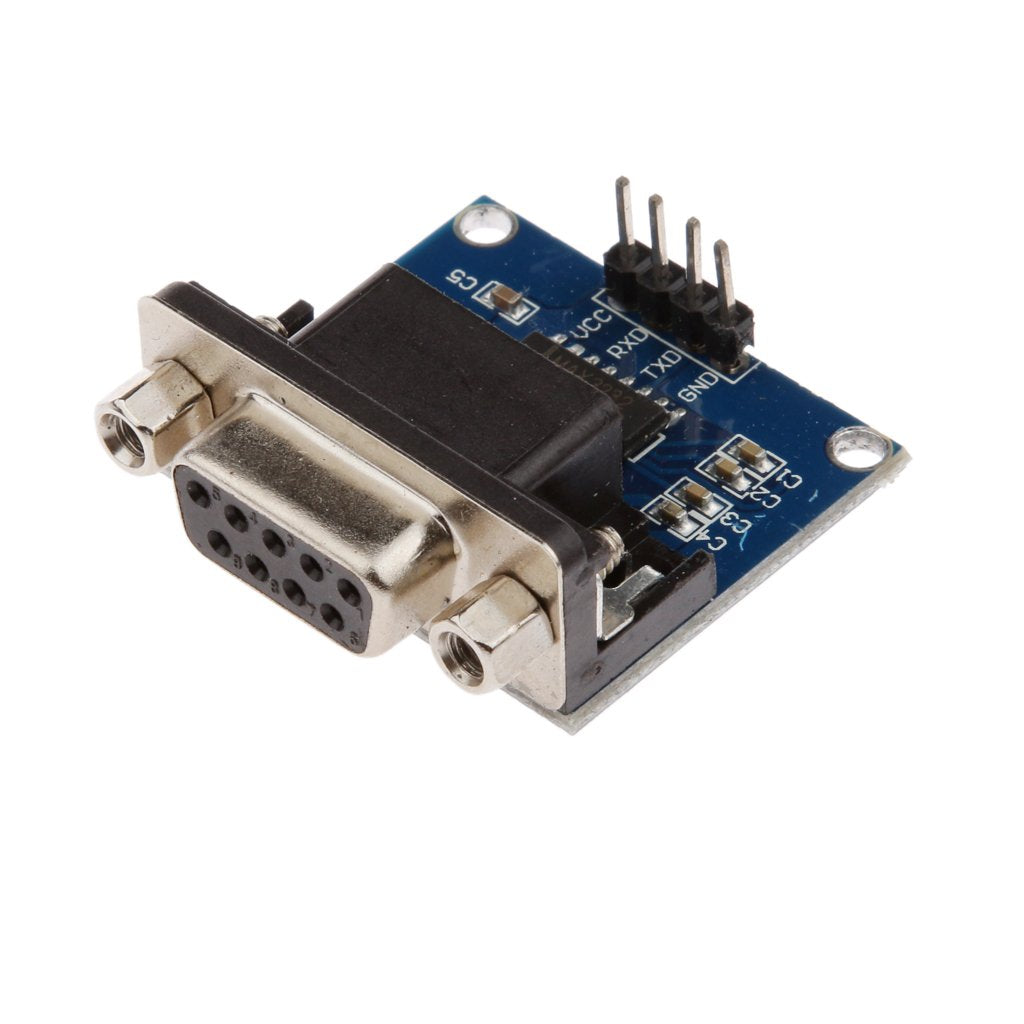

The RS232 to TTL Serial Interface Module converts the voltage levels of an RS232 serial port to TTL logic levels that a microcontroller can use. RS232 signals swing above and below 0 V, which would damage an Arduino or ESP32 pin, so this module sits between the two and lets your board talk safely to PCs, GPS units, scales, PLCs and other RS232 devices.

RS232 to TTL Serial Interface Module Specifications

• Function: two-way level conversion between RS232 and TTL serial
• RS232 side: positive and negative RS232 signal levels
• TTL side pins: VCC, GND, TXD and RXD
• Data lines: transmit and receive (TX and RX)
• Logic level: follows the module supply voltage

RS232 to TTL Serial Interface Module Applications

• Connecting Arduino or ESP32 to a PC serial port
• Reading data from scales, meters and industrial equipment
• Talking to PLCs, GPS receivers and modems with RS232 ports
• Debugging serial devices on the bench

What's in the Box

• 1 × RS232 to TTL serial interface module

Tip: Cross the data lines: module TXD goes to the microcontroller RX and module RXD to TX, with grounds shared. Check the chip marking before powering at 3.3 V, as some RS232 converter chips need 5 V.
