Small Microphone Sound Sensor Module KY-037

Part no. 10030042

$0.65
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

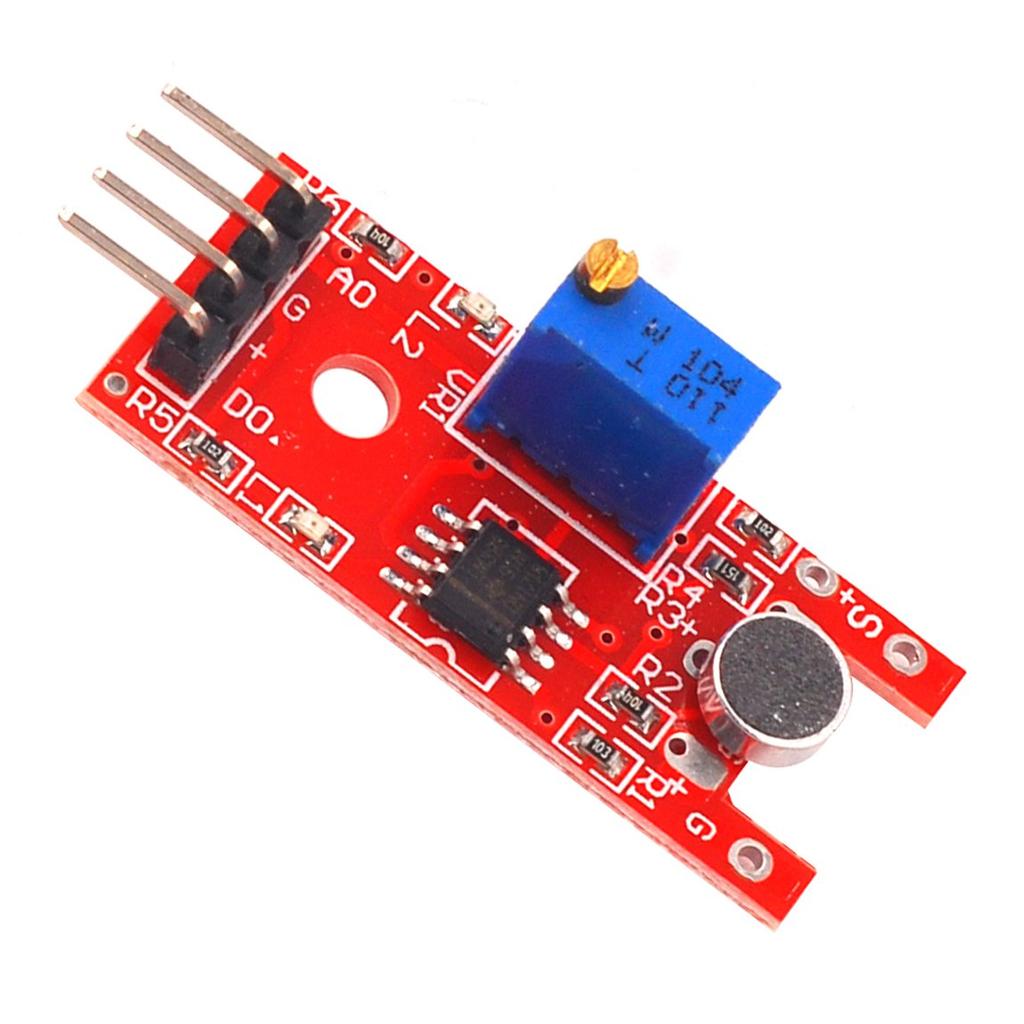

The Microphone Sound Sensor Module KY-037 is a small sound detection board that combines an electret condenser microphone with an LM393 comparator. It gives an analog output that follows the sound level and a digital output that switches when the sound passes a threshold you set with the onboard potentiometer. It works with Arduino, ESP32 and ESP8266 boards for clap switches, noise alarms and sound-reactive projects.

Microphone Sound Sensor Module KY-037 Specifications

  • Sensor: electret condenser microphone
  • Comparator: LM393
  • Outputs: analog (AO) and digital (DO)
  • Sensitivity: adjustable with the onboard potentiometer
  • Pins: 4 (AO, GND, VCC, DO)
  • Supply voltage: 3.3 V to 5 V
  • Indicators: power LED and digital output LED

Microphone Sound Sensor Module KY-037 Applications

  • Clap switches and sound-activated lights
  • Noise level alarms and monitoring
  • Robots that react to claps or knocks
  • Sound-reactive LED effects using the analog output
  • STEM classes and sensor kits

What's in the Box

  • 1 × KY-037 microphone sound sensor module

Tip: Turn the potentiometer until the output LED just goes off in a quiet room; a clap will then trigger the digital output. The analog output follows changes in loudness rather than giving a clean audio signal, so the module is not suited to recording sound. For ESP32 and other 3.3 V boards, power it from 3.3 V.
