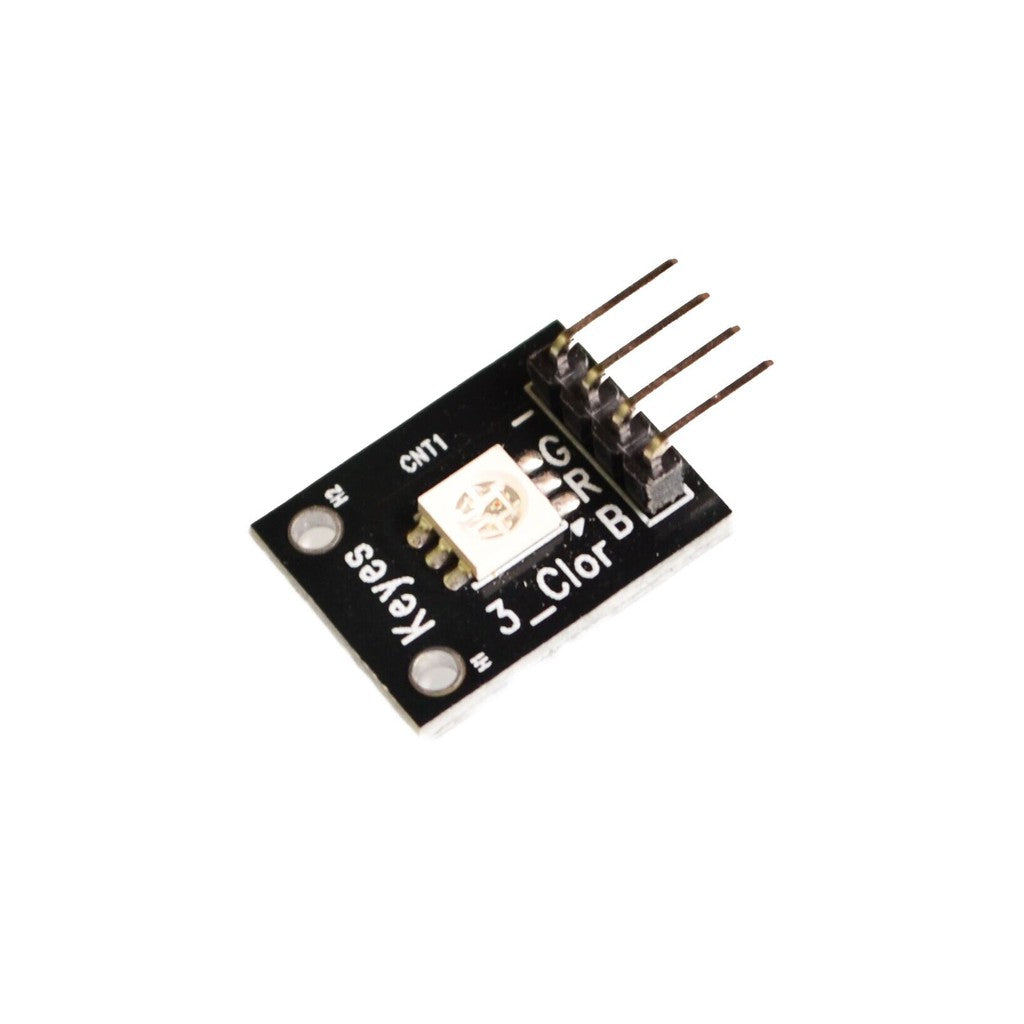

SMD 3 Color LED Module RGB

Part no. 10030141

$1.50
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The SMD 3 Color LED Module RGB is a small breakout board with a surface-mount RGB LED that holds red, green and blue chips in one package. By setting the brightness of each colour with PWM from an Arduino, ESP32 or Raspberry Pi, you can mix a wide range of colours, which makes it a good first step into colour control and status lighting.

SMD 3 Color LED Module Specifications

  • LED type: SMD RGB LED (red, green and blue in one package)
  • Colours: 3 base colours, mixable into many shades with PWM
  • Pins: R, G, B and a common pin (check the board markings)
  • Control: one PWM output per colour
  • Format: small module board with a pin header

SMD 3 Color LED Module Applications

  • Status and notification lights that change colour
  • Mood lighting and colour-mixing experiments
  • Showing sensor states, such as temperature ranges, by colour
  • Arduino and ESP32 beginner lessons on PWM

What's in the Box

  • 1 × SMD RGB LED module

Tip: Connect the common pin to GND or to the supply according to its marking (− means common cathode). If the board has no resistors, add 220 Ω to 330 Ω in series with each of R, G and B, use PWM pins (marked ~ on the Arduino Uno) and set each colour from 0 to 255 with analogWrite().
