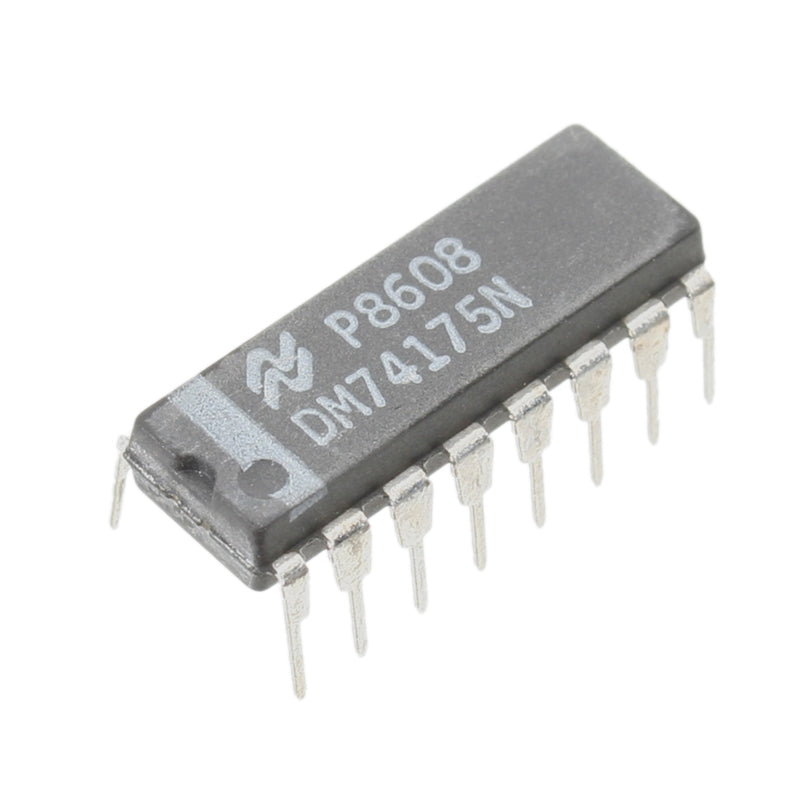

SN74175 Quad D-Type Flip Flop

The SN74175 Quad D-Type Flip Flop is a 74-series TTL logic IC with four positive-edge-triggered D flip-flops that share a common clock and a common clear input. On each rising clock edge, the level at each D input is stored and appears at its Q output, with the inverted value at Q̄. It is a simple way to build a 4-bit register in digital logic projects and lab exercises.

SN74175 Quad D-Type Flip Flop Specifications

• Function: 4 D-type flip-flops, positive-edge triggered
• Outputs: Q and Q̄ (complementary) for each flip-flop
• Clock: common to all four flip-flops
• Clear: common, active LOW (sets all Q outputs LOW)
• Logic family: standard TTL, 74 series
• Supply voltage: 5 V (4.75 V to 5.25 V)
• Pins: 16 (VCC on pin 16, GND on pin 8)

SN74175 Quad D-Type Flip Flop Applications

• 4-bit data registers and latches
• Synchronising button or sensor signals to a clock
• Building counters, shift registers and state machines
• Storing results in digital logic trainers
• University and school digital electronics labs

What's in the Box

• 1 × SN74175 IC

Tip: Keep the CLR pin HIGH for normal operation by tying it to 5 V or a pull-up resistor, and connect unused D inputs to a fixed level. Place a 100 nF ceramic capacitor between pins 16 and 8, close to the chip.
