Soil Moisture Detection ( Digital )

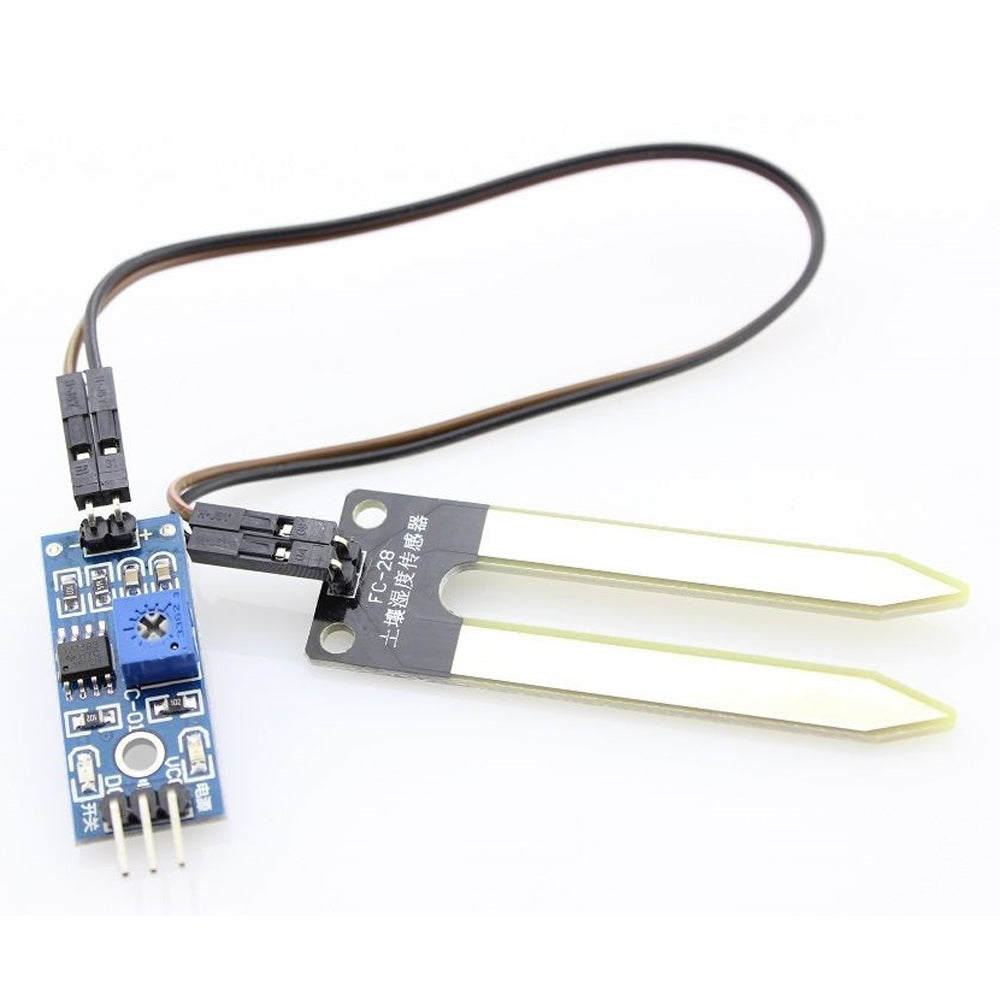

The Soil Moisture Detection module (digital) tells you when soil is too dry, using a fork-shaped probe pushed into the soil and a small comparator board. Its digital output switches when the moisture passes a threshold you set with the onboard potentiometer, so an Arduino, ESP32 or ESP8266 can turn on a pump or send an alert when plants need water.

Soil Moisture Detection Specifications

• Sensing: resistive fork probe with two electrodes
• Output: digital (DO), switches at the set threshold
• Threshold: adjustable with the onboard potentiometer
• Supply voltage: 3.3 V to 5 V
• Connection: pin header for jumper wires

Soil Moisture Detection Applications

• Automatic plant watering with a relay and water pump
• Dry-soil alarms for home plants and gardens
• Greenhouse monitoring with an ESP32 or ESP8266
• School science and STEM projects about plants

What's in the Box

• 1 × soil moisture probe
• 1 × comparator module board

Tip: The probe electrodes corrode faster when they are powered all the time, so power the sensor from a digital pin and switch it on only when you take a reading. To set the threshold, place the probe in soil at the moisture level where watering should start and turn the potentiometer until the digital output just changes state.
