TDA2030

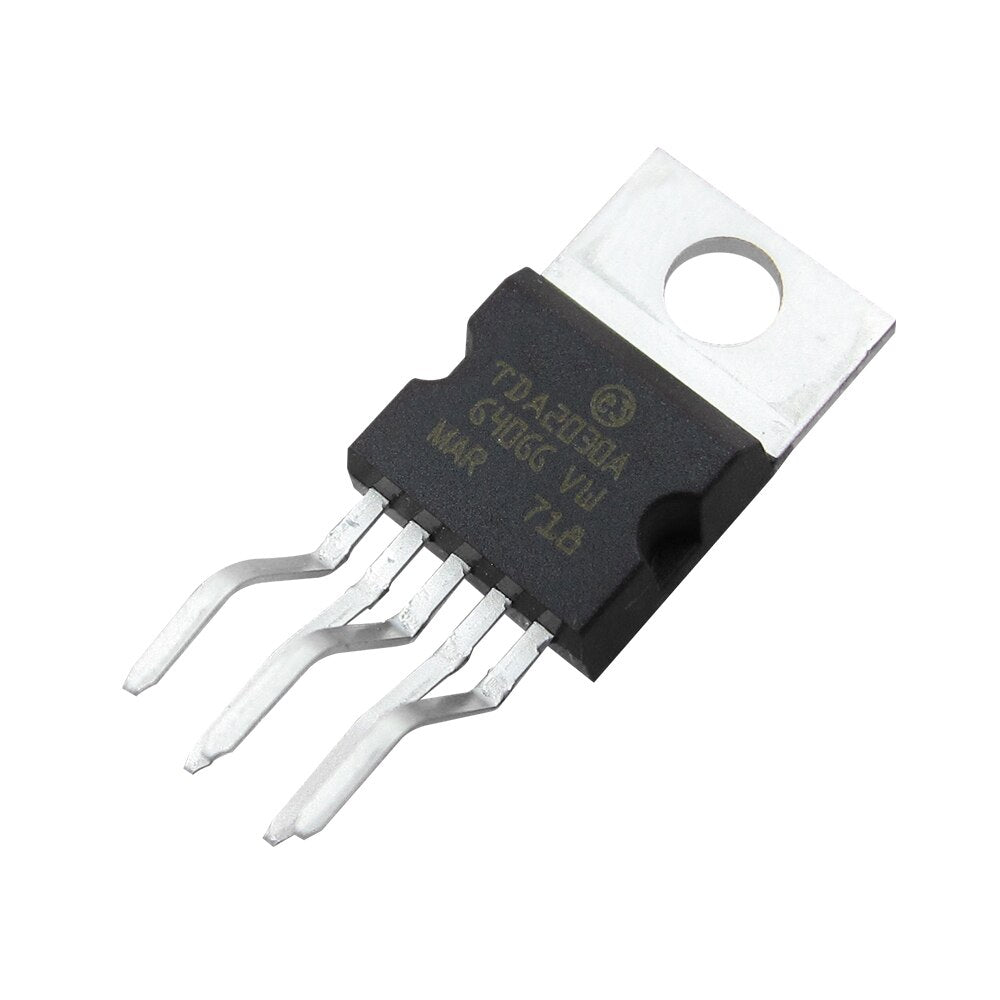

The TDA2030 is a monolithic class AB audio power amplifier IC in a 5-pin Pentawatt package. It delivers about 14 W into a 4 Ω speaker from a ±14 V supply, needs only a few external parts, and has built-in short-circuit protection and thermal shutdown. It is a popular choice for DIY amplifiers, active speakers and subwoofer projects.

TDA2030 Specifications

• Type: class AB audio power amplifier IC
• Output power: 14 W into 4 Ω, 9 W into 8 Ω (±14 V supply, 0.5% THD)
• Supply voltage: ±6 V to ±18 V split, or 12 V to 36 V single
• Output current: internally limited to 3.5 A peak
• Protection: short-circuit protection and thermal shutdown
• Package: Pentawatt, 5 pins
• Pinout: 1 non-inverting input, 2 inverting input, 3 −VS, 4 output, 5 +VS

TDA2030 Applications

• DIY mono and stereo audio amplifiers
• Active computer speakers and subwoofers
• Bridge (BTL) amplifiers using two ICs
• Intercoms and small PA projects
• Audio electronics classes and lab work

What's in the Box

• 1 × TDA2030 audio amplifier IC

Tip: Always mount the TDA2030 on a heatsink. The metal tab is connected to pin 3 (−VS), so with a split supply insulate the tab from a grounded heatsink using a mica pad and an insulating washer.
