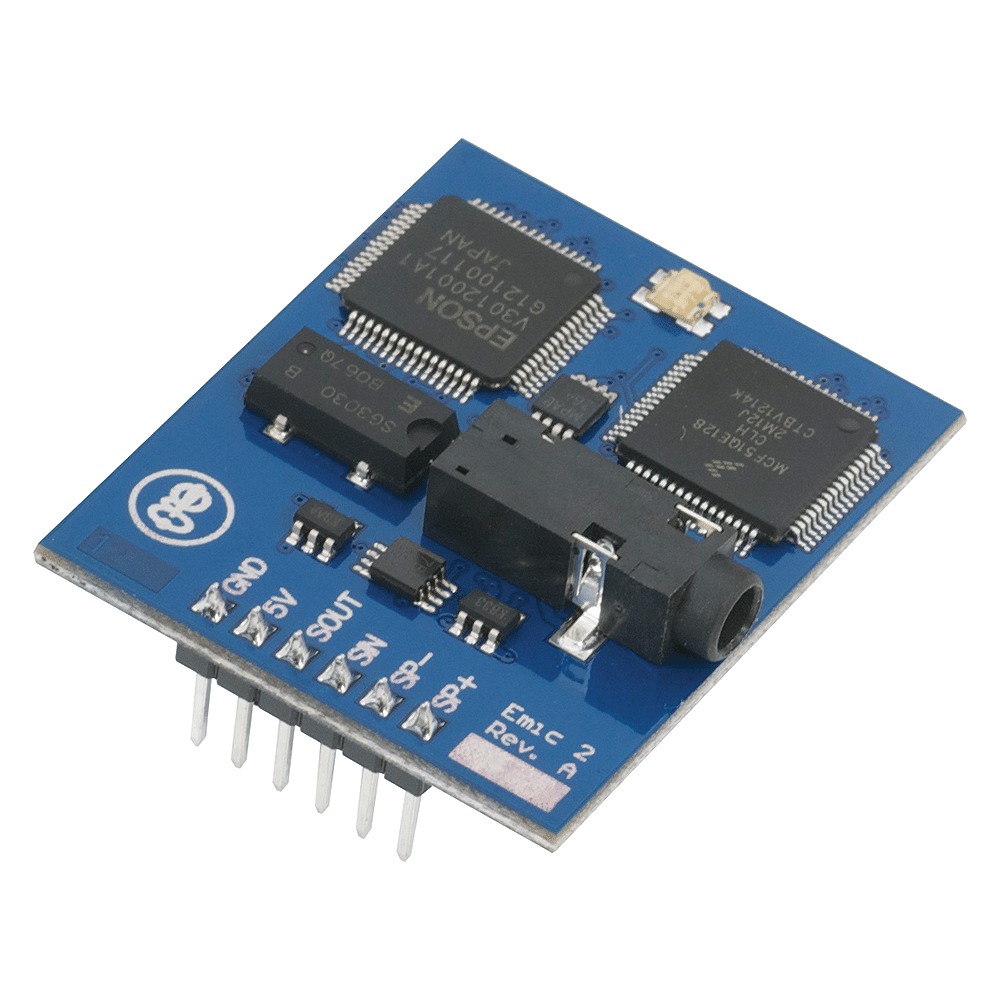

Text to Speech Module Emic 2

The Text to Speech Module Emic 2 turns plain text into clear, natural-sounding speech. Send it a sentence over a simple serial connection from an Arduino, ESP32 or PC and it speaks the words through a speaker or headphones. It uses the DECtalk speech engine, offers 9 voices in English and Spanish, and lets you change the voice, speed and volume on the fly.

Text to Speech Module Emic 2 Specifications

• Speech engine: DECtalk 5.0, with an Epson S1V30120 voice IC
• Voices: 9 preset voices (male, female and child)
• Languages: US English, Castilian Spanish and Latin Spanish
• Interface: asynchronous serial, 9600 bps, 8N1
• Supply voltage: 5 V DC
• Current: about 30 mA idle, 46–220 mA while speaking
• Audio: on-board amplifier, up to 300 mW into an 8 Ω speaker, plus a 3.5 mm audio jack
• Connections: 6-pin, 0.1 in single-row header (GND, 5V, SOUT, SIN, SP−, SP+)
• Size: 31.7 × 38.1 × 9.4 mm

Text to Speech Module Emic 2 Applications

• Talking robots and voice prompts
• Reading out sensor values and alarms
• Accessibility and assistive devices
• Talking clocks, toys and interactive displays

What's in the Box

• 1 × Emic 2 text-to-speech module

Tip: Wait for the module's ':' prompt before sending each new command, since it shows the Emic 2 is ready. Connect an 8 Ω speaker to SP+ and SP−, or use the 3.5 mm jack with amplified speakers.
