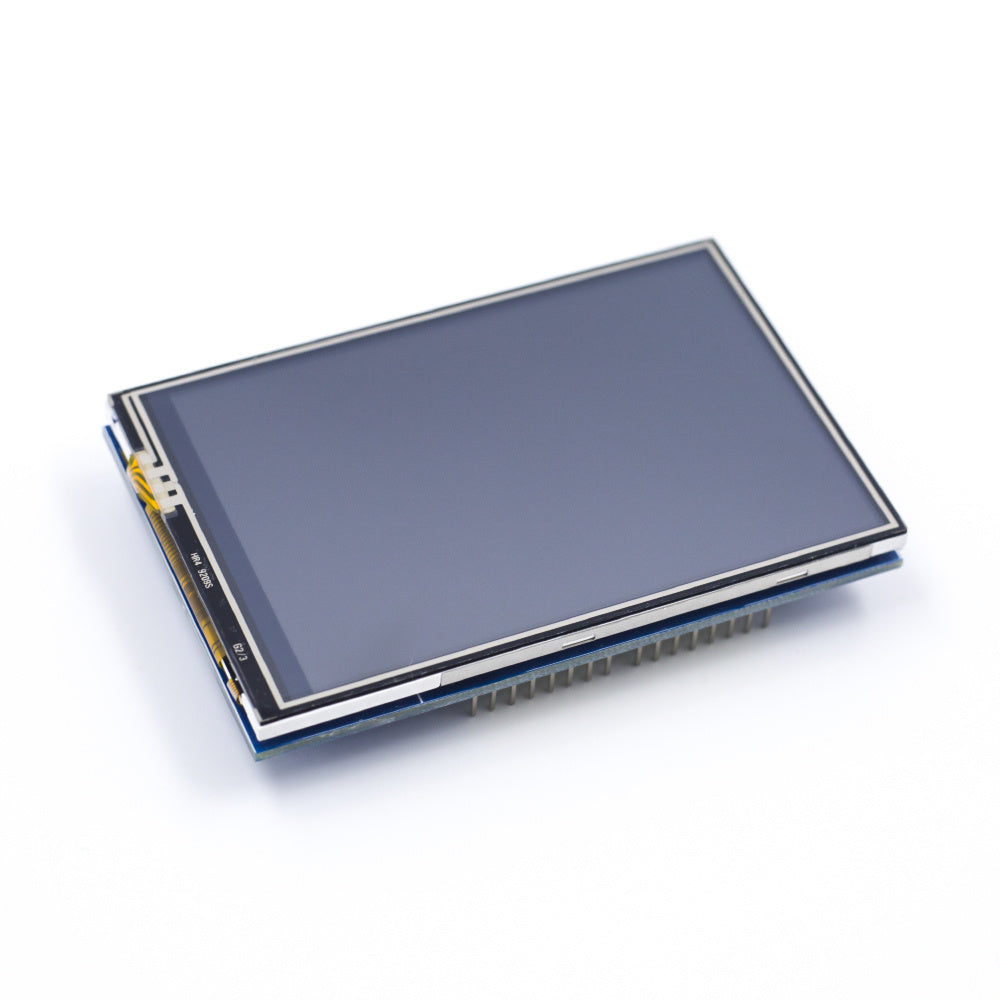

TFT LCD Shield 3.5"

Part no. 10062708

$14.00
Sold out
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The TFT LCD Shield 3.5" is a 3.5-inch colour TFT display made as an Arduino shield, so it plugs straight onto the headers of an Arduino Uno or Mega 2560 with no wiring. With a 480 × 320 pixel resolution and an ILI9486 driver, it gives plenty of room for text, graphics, gauges, menus and images, a big step up from small character LCDs and OLED screens.

TFT LCD Shield 3.5" Specifications

  • Screen size: 3.5 inch
  • Display type: colour TFT LCD
  • Resolution: 480 × 320 pixels
  • Driver IC: ILI9486
  • Form factor: Arduino shield for Uno and Mega 2560
  • Interface: 8-bit parallel data bus through the shield headers

TFT LCD Shield 3.5" Applications

  • Sensor dashboards and data readouts
  • Menus and user interfaces for Arduino projects
  • Clocks, weather stations and simple games
  • Showing graphics, icons and images
  • Learning graphics programming

What's in the Box

  • 1 × 3.5-inch TFT LCD shield

Tip: Use the MCUFRIEND_kbv library with Adafruit_GFX and run its example sketch first to read the driver ID. A parallel shield uses most of the Uno's pins, so a Mega 2560 is the better choice if you also need sensors or buttons.
