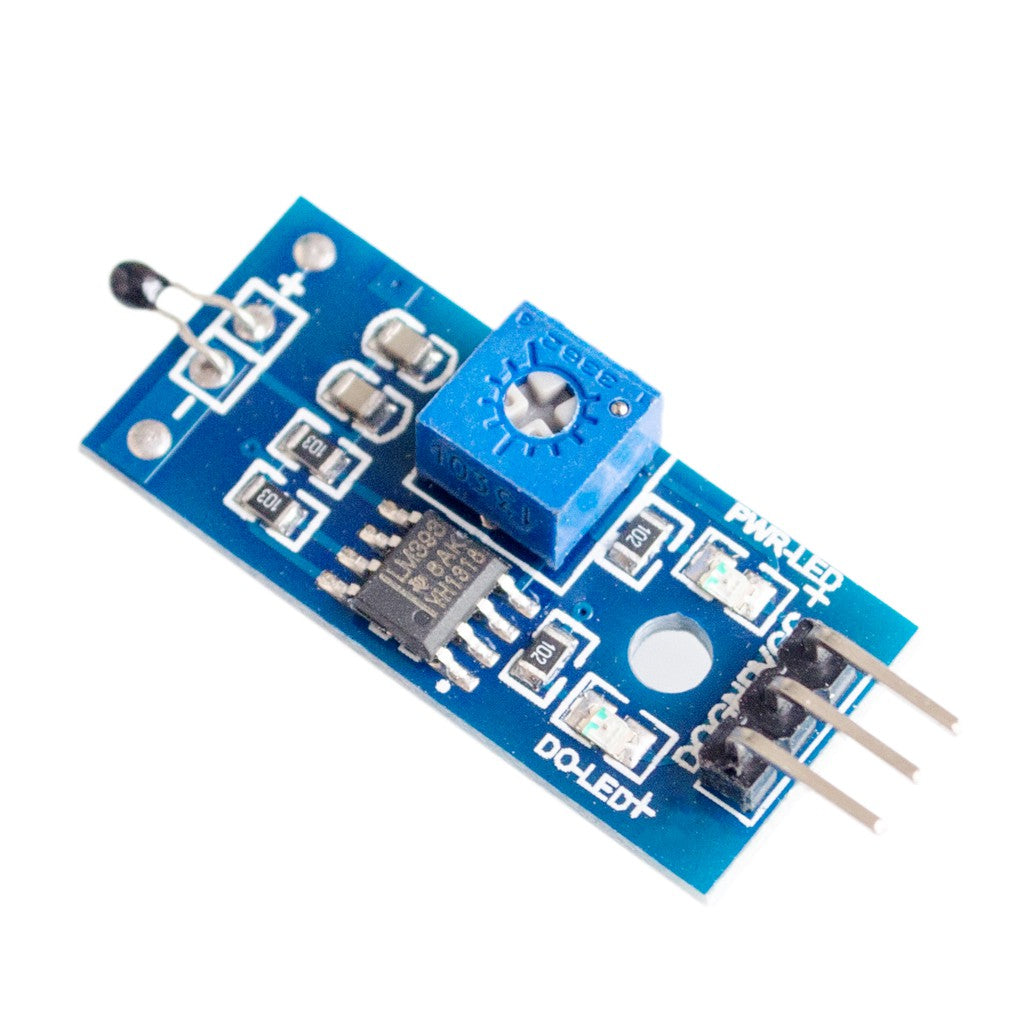

Thermal Thermistor Temperature Sensor Module

The Thermal Thermistor Temperature Sensor Module is a small board with an NTC thermistor, a resistor whose value falls as the temperature rises. The board turns that change into a signal that an Arduino, ESP32 or other microcontroller can read, so it is an easy way to add temperature sensing, overheating alarms or automatic fan control to a project.

Thermal Thermistor Temperature Sensor Specifications

• Sensing element: NTC thermistor
• Behaviour: resistance falls as the temperature rises
• Supply voltage: 3.3–5 V DC
• Connections: pin header with power, ground and signal pins (see the labels on the board)
• Works with: Arduino, ESP32 and similar boards

Thermal Thermistor Temperature Sensor Applications

• Overheating alarms for power supplies, motors and batteries
• Automatic fan control
• Room and enclosure temperature monitoring
• 3D printer enclosure and incubator monitoring
• Teaching how thermistors and sensors work

What's in the Box

• 1 × thermistor temperature sensor module

Tip: A thermistor does not respond in a straight line, so convert the reading to degrees with the Beta or Steinhart–Hart equation, or calibrate it against a thermometer. Where you need accurate readings in °C, a digital sensor such as the DS18B20 is the better choice.
