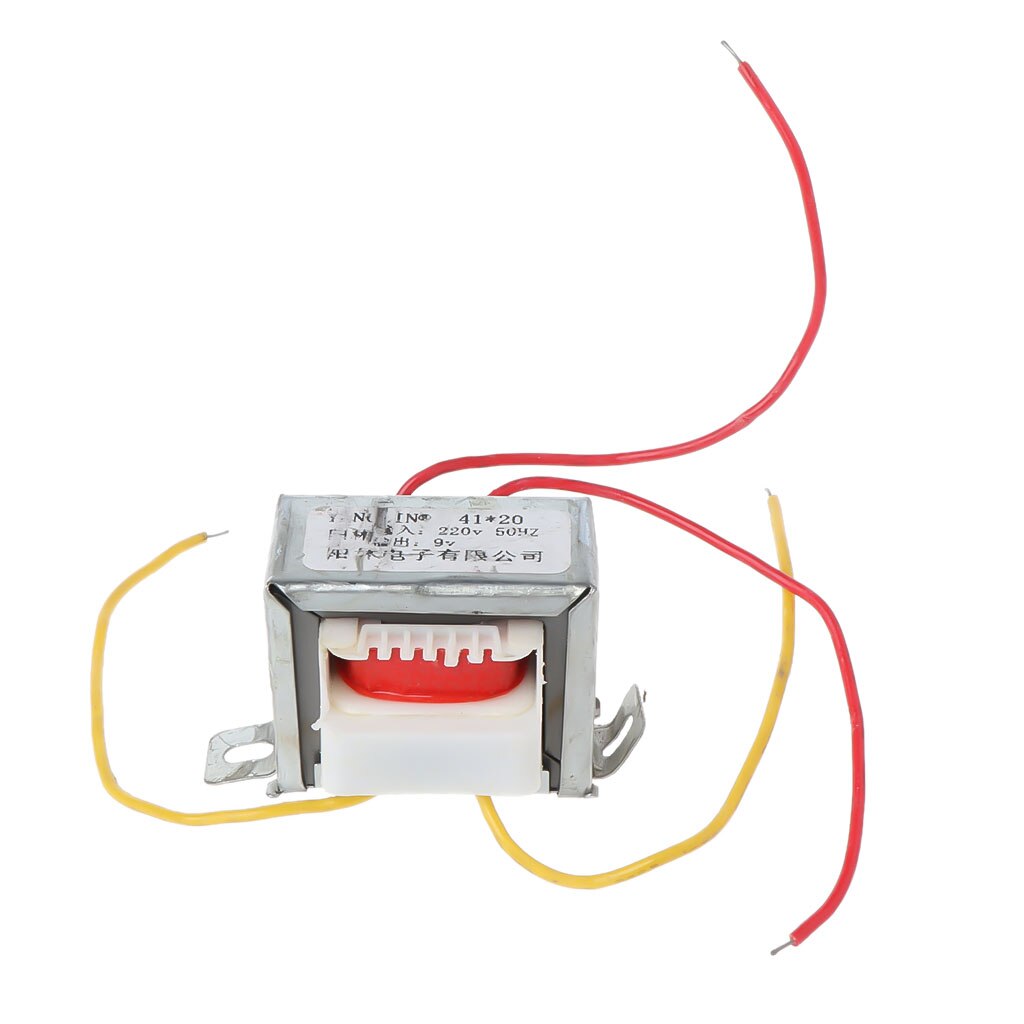

Transformer 9-0-9V 50VA

The Transformer 9-0-9V 50VA is a centre-tapped step-down transformer with a 9-0-9 V AC secondary and a 50 VA power rating. The two 9 V halves can be used with the centre tap for full-wave rectification, or together as 18 V AC, with up to about 2.8 A available. It is a good base for low-voltage, medium-current linear supplies, small amplifiers and electronics lab benches.

Transformer 9-0-9V 50VA Specifications

• Secondary: 9-0-9 V AC, centre-tapped (9 V + 9 V)
• Full secondary: 18 V AC end to end
• Power rating: 50 VA
• Secondary current: about 2.8 A from the full 18 V winding (50 VA ÷ 18 V)
• Primary: AC mains; check the label for the rated input voltage
• Type: step-down transformer with a centre tap

Transformer 9-0-9V 50VA Applications

• Unregulated supplies of about 12 V DC using two diodes and the centre tap
• Regulated 5 V and adjustable supplies with a 7805 or LM317
• Dual-rail supplies for small audio amplifiers and preamps
• Bridge-rectified supplies of about 24 V DC from the full winding
• Replacement transformer for amplifiers, chargers and equipment

What's in the Box

• 1 × 9-0-9 V 50 VA transformer

Tip: After rectification and filtering, each 9 V half gives about 12 V DC at light load, so 25 V filter capacitors are suitable; use 35 V capacitors for the full 18 V winding. Heatsink the rectifier and regulator at high currents. The primary connects to mains: insulate it, fit a fuse and never work on it while it is plugged in.
