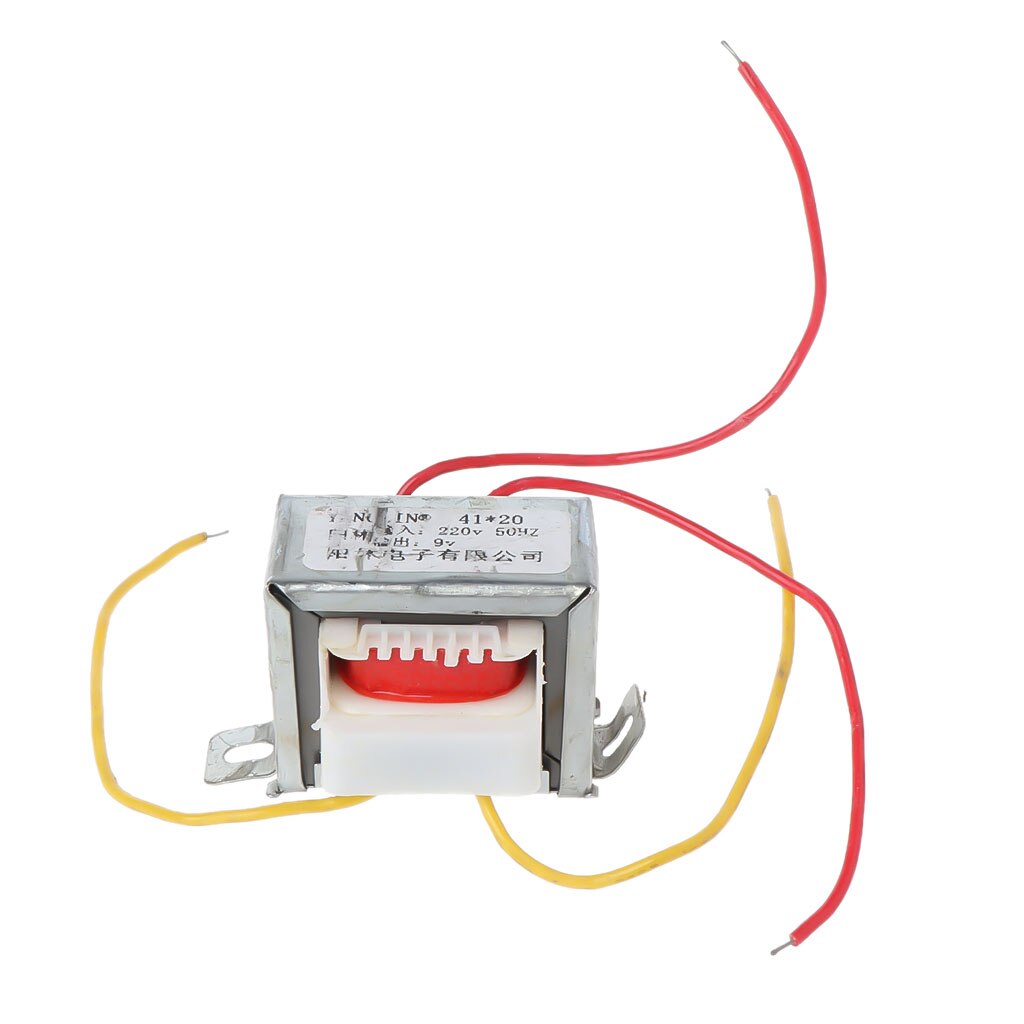

Transformer 9-0-9V 60VA

The Transformer 9-0-9V 60VA is a centre-tapped step-down transformer with a 9-0-9 V AC secondary and a 60 VA power rating. It gives 9 V AC on each half and 18 V AC across the full winding, at up to about 3.3 A, so it can feed higher-current low-voltage supplies for amplifiers, LED lighting, motor drivers and workshop projects.

Transformer 9-0-9V 60VA Specifications

• Secondary: 9-0-9 V AC, centre-tapped (9 V + 9 V)
• Full secondary: 18 V AC end to end
• Power rating: 60 VA
• Secondary current: about 3.3 A from the full 18 V winding (60 VA ÷ 18 V)
• Primary: AC mains; check the label for the rated input voltage
• Type: step-down transformer with a centre tap

Transformer 9-0-9V 60VA Applications

• Full-wave rectified supplies of about 12 V DC using two diodes and the centre tap
• Regulated 5 V supplies with a 7805, or adjustable supplies with an LM317
• Dual-rail (positive and negative) supplies for small audio amplifiers
• About 24 V DC from the full 18 V winding with a bridge rectifier
• Replacement transformer for amplifiers and equipment

What's in the Box

• 1 × 9-0-9 V 60 VA transformer

Tip: Each 9 V half gives about 12 V DC after rectification and filtering at light load (9 V × 1.41 minus the diode drop); use filter capacitors rated 25 V, or 35 V if you rectify the full 18 V winding. At currents of several amps the diodes and regulator get hot, so mount them on a heatsink. Insulate the mains primary and fit a fuse.
