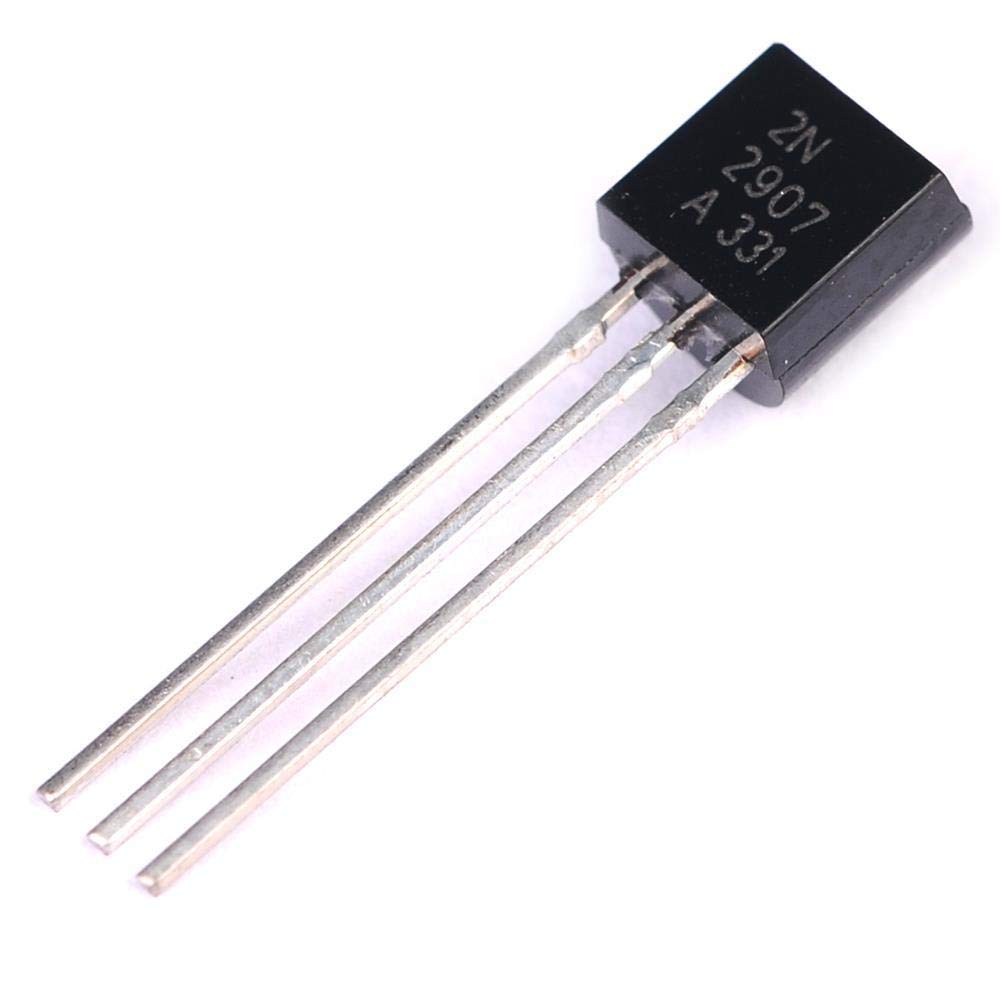

Transistor 2N2907 2907 PNP 60V 0.6A
Part no. L1: - / L2: K2386 / L3: - (10321072)
- Pick up in Msaitbeh, Beirut
- Delivery across Lebanon
- Bulk and education pricing on request
Description
The Transistor 2N2907 is a general-purpose PNP bipolar junction transistor rated for 60 V and 0.6 A (600 mA). It is the PNP partner of the popular 2N2222 NPN transistor and is widely used for high-side switching, small-signal amplification and push-pull output stages in hobby and educational circuits.
Transistor 2N2907 Specifications
- Type: PNP bipolar junction transistor (BJT)
- Collector–emitter voltage (VCEO): 60 V
- Collector current (IC): 600 mA maximum
- DC current gain (hFE): 100–300 at 150 mA
- Transition frequency: 200 MHz minimum
- NPN complement: 2N2222
Transistor 2N2907 Applications
- High-side switching of LEDs, relays and small loads
- Small-signal audio and general amplifiers
- Push-pull and complementary output stages with the 2N2222
- Current sources and current mirrors
- Electronics labs and university courses
What's in the Box
- 1 × 2N2907 PNP transistor
Tip: In a PNP switch the emitter goes to the positive supply, and the transistor turns on when the base is pulled below the emitter voltage through a resistor such as 1 kΩ. Check the pin order (emitter, base, collector) in the datasheet for your package before soldering.
