Transistor 2N6027

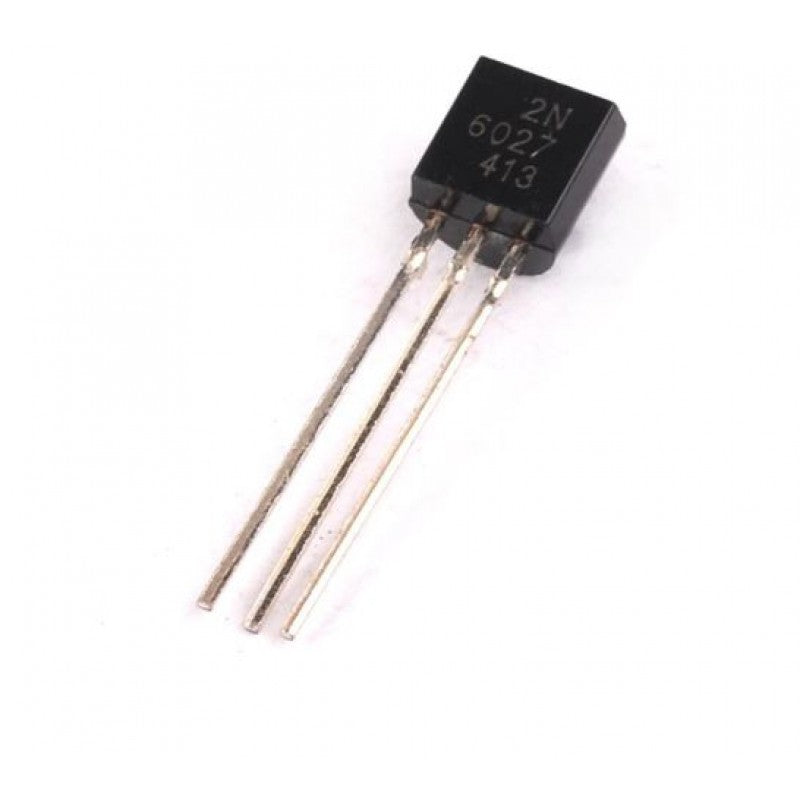

The Transistor 2N6027 is a programmable unijunction transistor (PUT) in a TO-92 package. Unlike a fixed UJT, its trigger point is set by two external resistors on the gate, so you can tune the circuit to your needs. It is a classic part for relaxation oscillators, timers, pulse generators and triggering SCRs and triacs.

Transistor 2N6027 Specifications

• Type: programmable unijunction transistor (PUT)
• Voltage rating: 40 V
• Power dissipation: 300 mW
• Package: TO-92, through-hole
• Pins: 1 = anode, 2 = gate, 3 = cathode
• Trigger point: set by an external resistor divider on the gate

Transistor 2N6027 Applications

• Relaxation oscillators and LED flashers
• Long-period timers and sawtooth generators
• Trigger circuits for SCRs and triacs
• Pulse generators and electronics teaching labs

What's in the Box

• 1 × 2N6027 programmable unijunction transistor

Tip: The PUT turns on when the anode rises about 0.6 V above the gate, so set the gate voltage with a resistor divider and charge a capacitor on the anode through a resistor to make a simple oscillator. Check the pinout in the datasheet, as it differs from ordinary bipolar transistors.
