Transistor - 2N7000

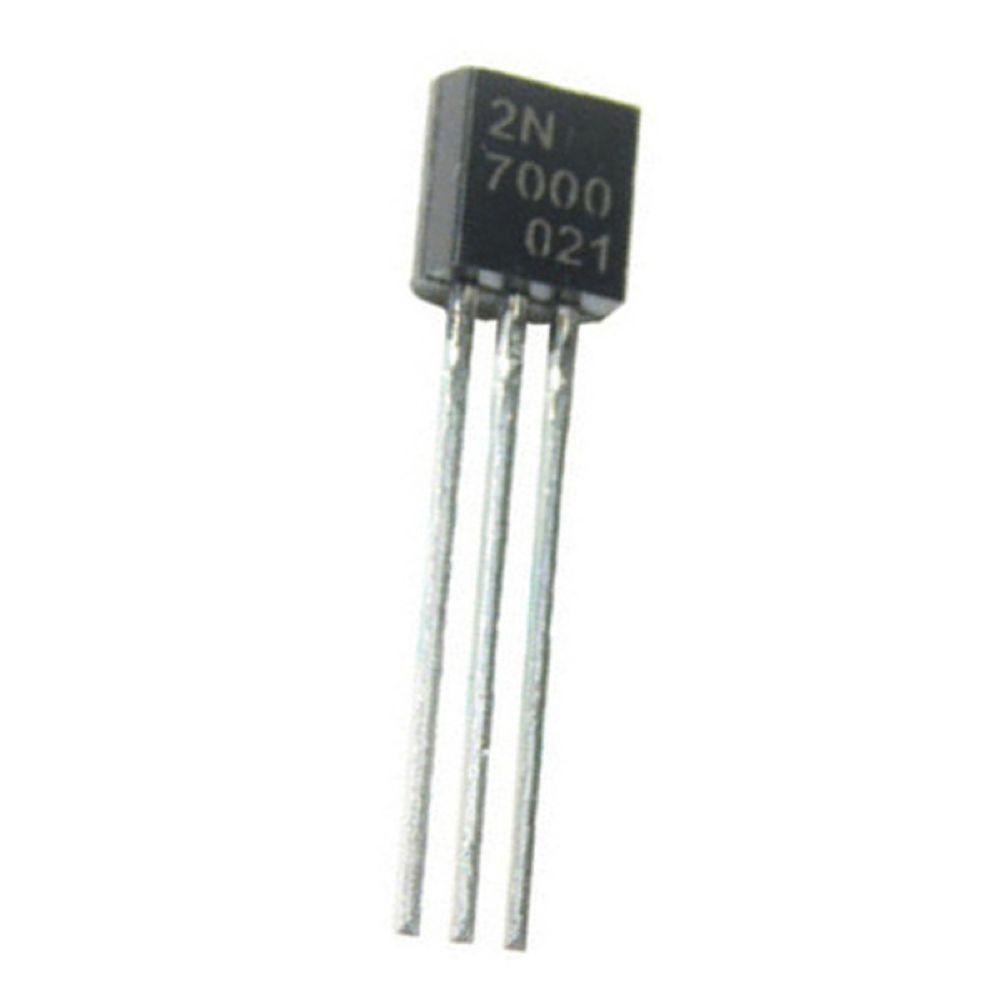

The 2N7000 is a small N-channel enhancement-mode MOSFET in a TO-92 package. It switches loads up to 60 V and 200 mA with almost no gate current, which makes it ideal for driving LEDs, small relays and buzzers from microcontroller pins, and for simple logic level shifting between 3.3 V and 5 V circuits.

2N7000 Specifications

• Type: N-channel enhancement-mode MOSFET
• Drain-source voltage: 60 V max
• Continuous drain current: 200 mA
• Gate threshold voltage: 0.8–3 V
• Gate-source voltage: ±20 V max
• On-resistance: 5 Ω max at 10 V gate drive
• Package: TO-92, pins source, gate, drain

2N7000 Applications

• Switching LEDs, buzzers and small relays from Arduino and ESP32 pins
• Bidirectional I2C level shifters between 3.3 V and 5 V
• Low-side switches in signal and logic circuits
• Electronics education and prototyping

What's in the Box

• 1 × 2N7000 MOSFET

Tip: Add a 10 kΩ pull-down resistor from gate to source so the MOSFET stays off when the microcontroller pin is floating. At 3.3 V gate drive it may not turn fully on, so keep loads small, and fit a flyback diode across relay coils.
