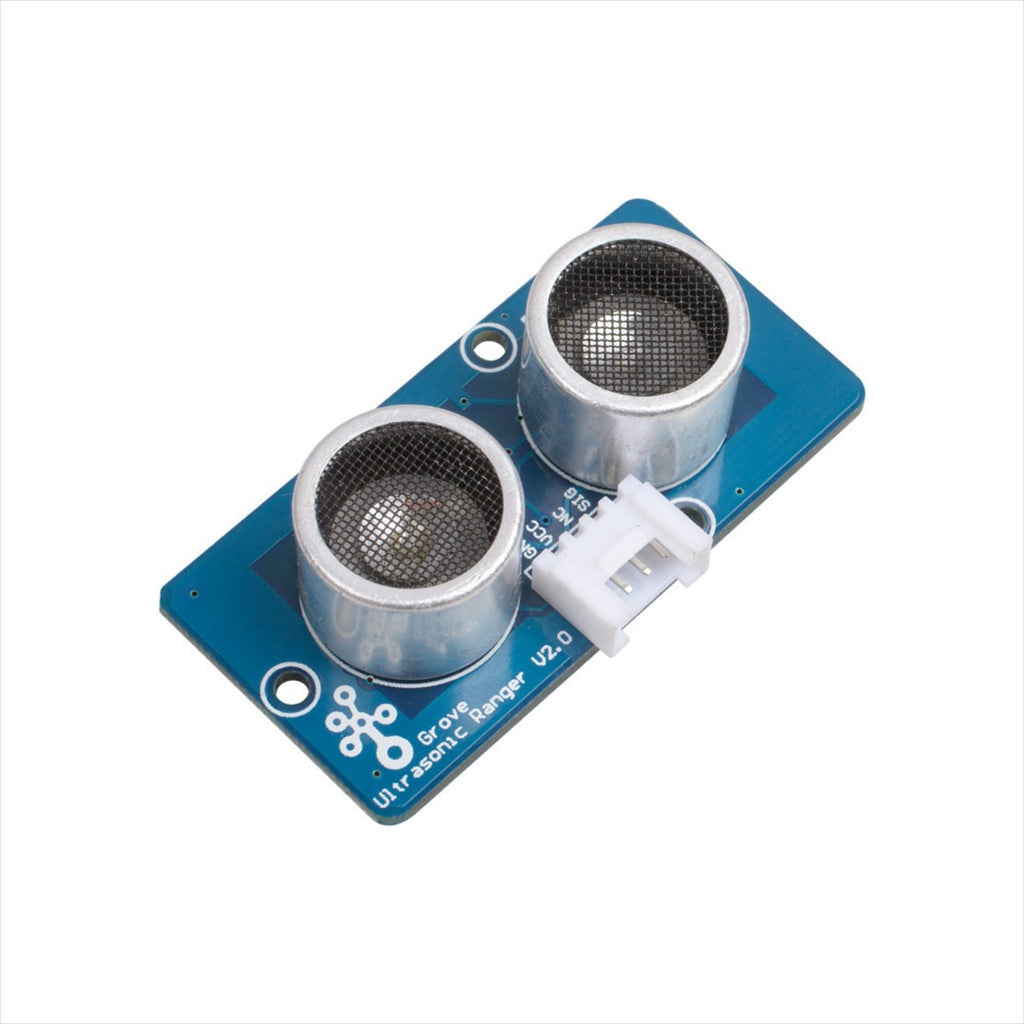

Ultrasonic Sensor Grove

The Ultrasonic Sensor Grove is a non-contact distance sensor with a Grove connector, so it plugs into a Grove base shield or Grove-compatible board with one cable and no soldering. It sends out 40 kHz sound pulses and times the echo to measure the distance to an object, using a single signal pin for both trigger and echo.

Ultrasonic Sensor Grove Specifications

• Operating voltage: 3.2–5.2 V, for 3.3 V and 5 V boards
• Operating current: about 8 mA
• Ultrasonic frequency: 40 kHz
• Measuring range: 2–350 cm
• Resolution: 1 cm
• Interface: Grove 4-pin connector, one SIG pin shared by trigger and echo
• Size: 50 × 25 × 16 mm

Ultrasonic Sensor Grove Applications

• Obstacle avoidance for robots and smart cars
• Parking aids and distance displays
• Water tank and bin level measurement
• People and object detection
• Grove classroom kits and STEM projects

What's in the Box

• 1 × Ultrasonic Sensor Grove module

Tip: Install the Grove Ultrasonic Ranger library in the Arduino IDE and connect the sensor to a digital Grove port; the library returns the distance in centimetres. Soft or angled surfaces reflect less sound, so readings are most reliable on flat, hard objects.
