USB 32Ch Servo Motor Controller Board, support PS2 controler WIFI

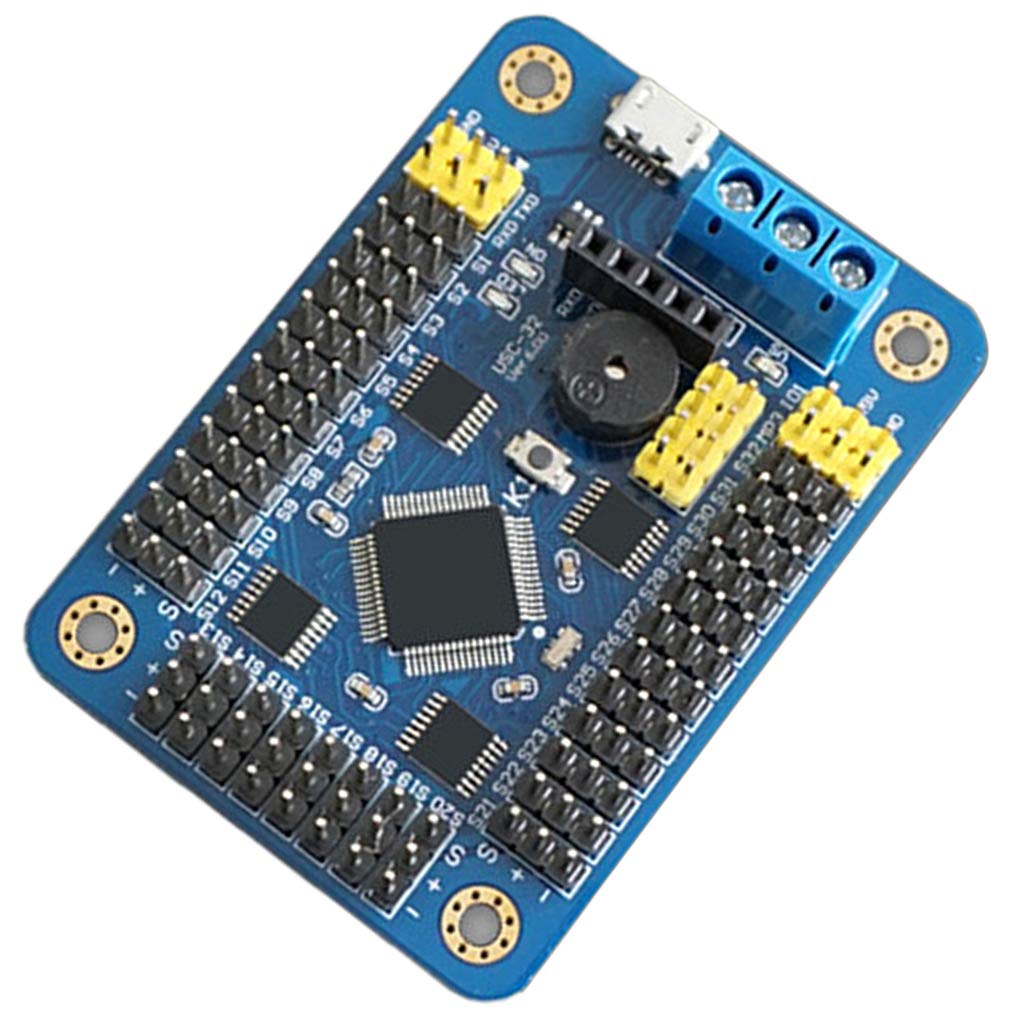

The USB 32Ch Servo Motor Controller Board is a servo control board with 32 output channels, made for robots that need many servos moving together, such as biped humanoids, hexapods and multi-joint robot arms. It connects to a computer over USB for setting up and testing movements, and it also supports control from a PS2 wireless controller and over WiFi, so a finished robot can be driven without a PC.

USB 32Ch Servo Motor Controller Board Specifications

• Servo channels: 32
• PC connection: USB
• Remote control: supports a PS2 wireless controller
• Wireless control: WiFi support
• Servo type: standard 3-wire hobby servos (signal, +, −), such as MG995, MG996 and SG90

USB 32Ch Servo Motor Controller Board Applications

• 17DOF biped humanoid robots
• Hexapod and quadruped walking robots
• Multi-axis robot arms and grippers
• Animatronics and moving displays
• University robotics labs and competitions

What's in the Box

• 1 × 32-channel servo controller board

Tip: USB cannot power servos, so feed them from a separate battery or power supply that can deliver several amps, especially with metal-gear servos. Match each servo plug to the signal, + and − markings on the board before switching on.
