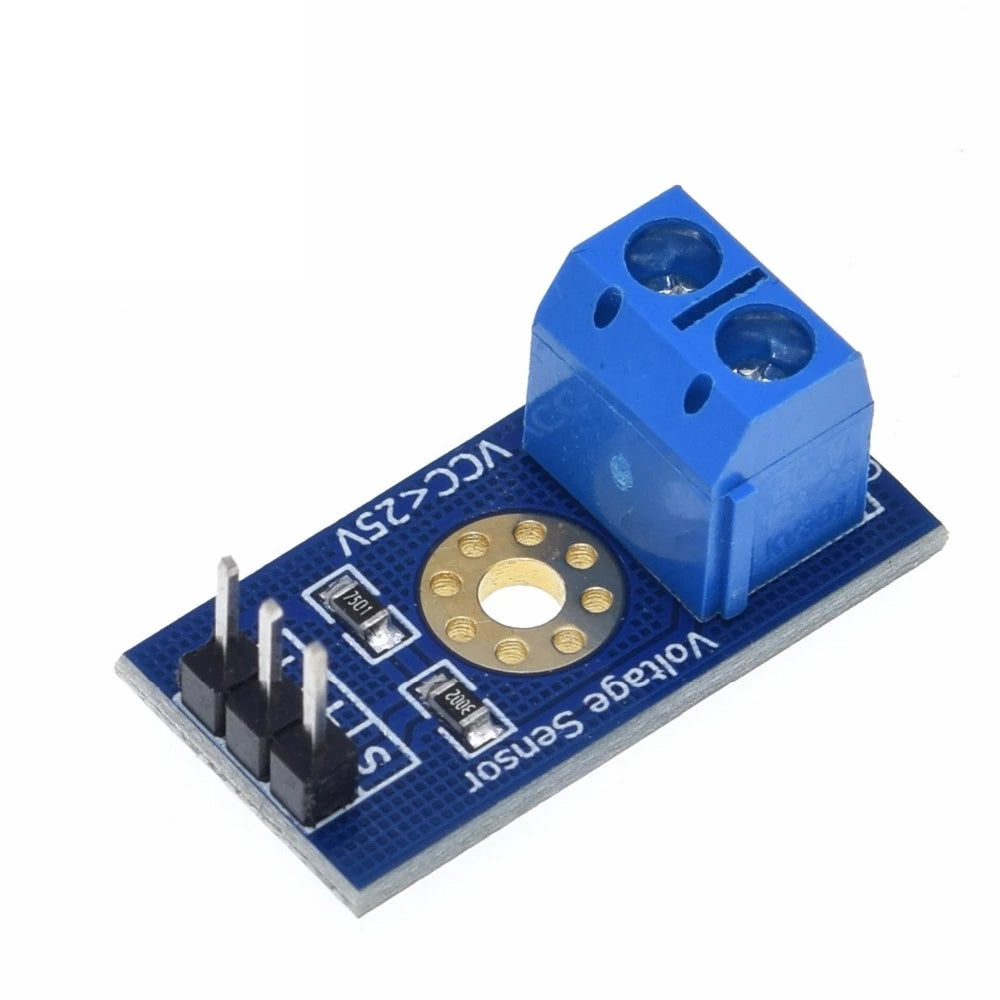

Voltage Sensor Detection Module

Part no. 10051184

$0.60
Sold out
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The Voltage Sensor Detection Module is a simple resistor divider board that lets a microcontroller measure DC voltages higher than its own supply. It divides the input voltage by 5, so an Arduino with a 5 V analog reference can read up to 25 V, and a 3.3 V board such as the ESP32 can read up to about 16.5 V. It is a quick way to monitor batteries, solar panels and power supplies.

Voltage Sensor Detection Module Specifications

  • Measurement: DC voltage only
  • Input range: 0 V to 25 V with a 5 V ADC; 0 V to 16.5 V with a 3.3 V ADC
  • Divider: 30 kΩ and 7.5 kΩ resistors, ratio 5:1
  • Input: screw terminal for the voltage to be measured (VCC and GND)
  • Output: 3-pin header – S (signal to the analog pin), + and − (GND)
  • Resolution: about 0.024 V with a 10-bit 5 V Arduino ADC

Voltage Sensor Detection Module Applications

  • Battery voltage monitoring for 12 V lead-acid and lithium packs
  • Solar panel and charge controller logging
  • Low-battery alarms on robots and RC models
  • Checking power supply rails in test setups
  • Arduino and ESP32 data logging projects

What's in the Box

  • 1 × voltage sensor detection module

Tip: Connect S to an analog pin and − to the board's GND; on a 5 V Arduino the measured voltage is analogRead × 5.0 / 1023 × 5. Never exceed 25 V (16.5 V on 3.3 V boards), and remember that the input GND is connected to the microcontroller GND, so only measure DC sources that can share that ground, and never mains.
